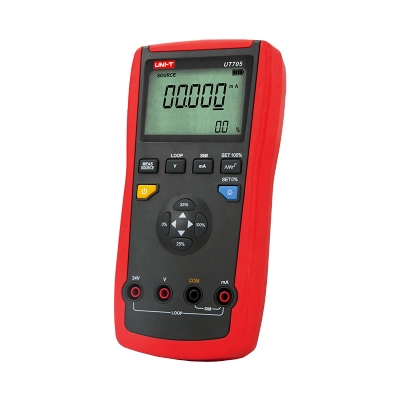

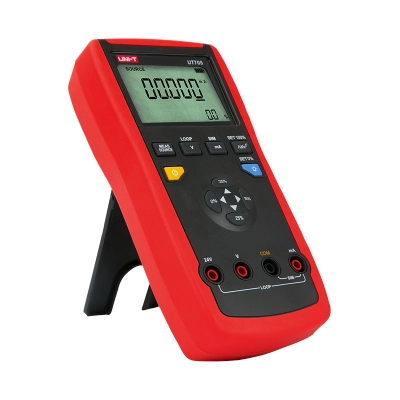

    UT705 Single Function Loop Calibrator

    UT705 is a high performance device for loop calibration and maintenance. Designed with high-accuracy DC current and transmitter analog current outputs, UT705 has DC voltage/current and loop current measurement functions with button settings, selectable steps and ramp outputs to help user work more efficiently and accurately. It features LCD backlight, auto power off and 1m drop proof.

    REQUEST A QUOTE     DOWNLOAD CATLOUGE

    Compare
    Categories: Meters, Process Calibrators, UNI-T
    Share:
    • Description
    Description

    Features of UT705 Single Function Loop Calibrator

    Certifications: CE, UKCA

    • Automatic ramp for DC current output
    • Manual/automatic stepping and  ramping output
    • Stores and recalls setups
    • Measures: DC voltage, DC current, 4-20mA loop current
    • Output functions: DC current, analog transmitter, 24V loop
    • Up to 0.02% accuracy current measurement at  same time

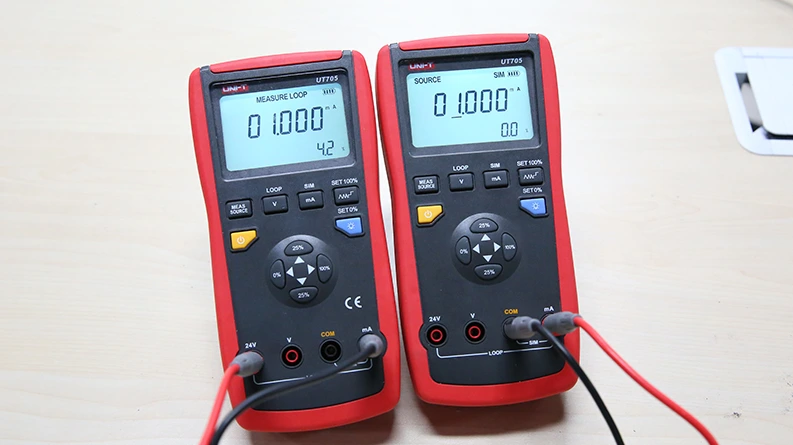

    UT705-application-1
    UT705-application-2

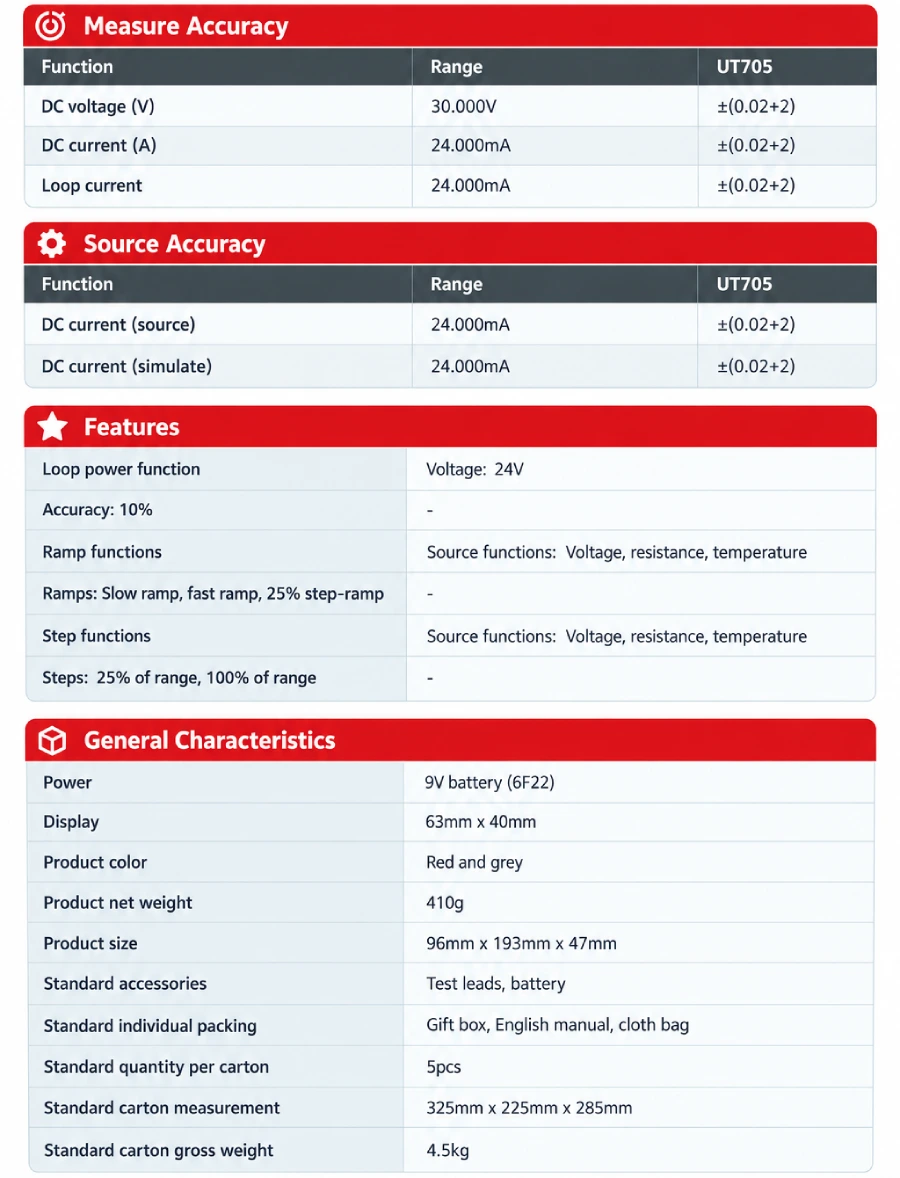

      UT705 | Datasheet

      UT705 | User Manual
