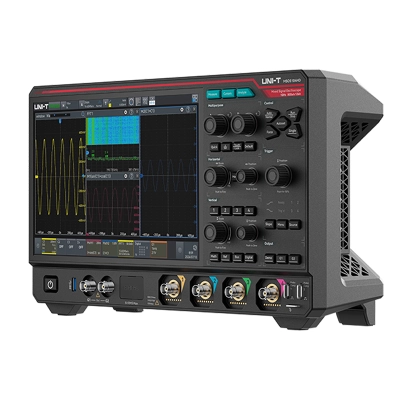

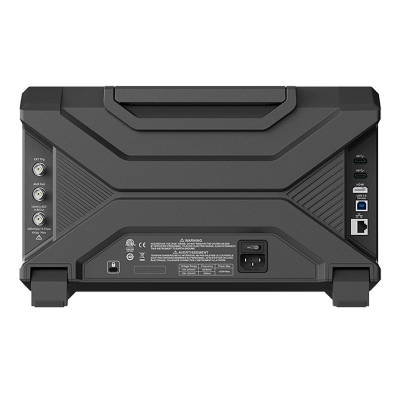

MSO5000HD Series

MSO5000HD Series

The MSO5000HD is a high-resolution oscilloscope that integrates 4 signal channels, a 16-channel logic analyzer, and a 2-channel arbitrary waveform generator. Equipped with R12™ 12-bit resolution ADC, it can enhance resolution to 16-bit through ERES (enhanced resolution). It features a maximum sampling rate of 5 GSa/s, a memory depth of 500 Mpts, and a waveform capture rate of 1,500,000 wfms/s, ensuring high-quality waveform analysis. The MSO5000HD supports 15 types of trigger events and 15 types of protocol data, and it can be remotely controlled via a WebServer. It is suitable for various testing and analysis tasks in fields such as medical, low-power devices, integrated circuits, high-precision power supplies, electricity, and automotive electronics. The MSO5000HD is a versatile and powerful instrument.

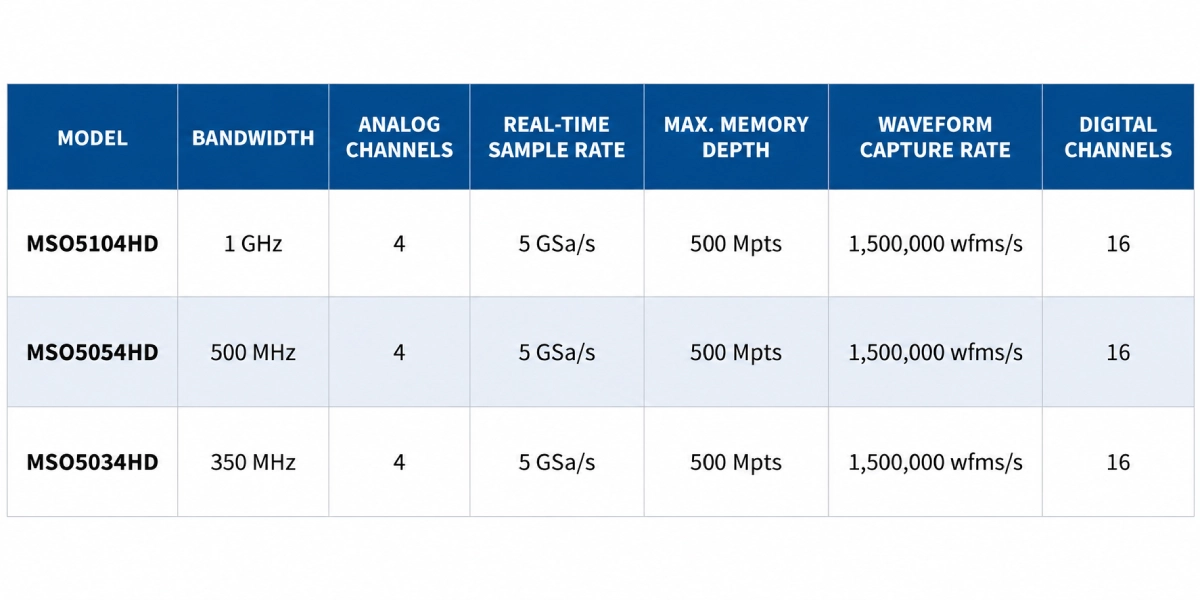

350 MHz~1 GHz

BANDWIDTH

4

ANALOG CHANNELS

5 GSa/s

REAL-TIME SAMPLE RATE

500 Mpts

MAX. MEMORY DEPTH

1,500,000wfms/s

WAVEFORM CAPTURE RATE

16

DIGITAL CHANNELS

REQUEST A QUOTE DOWNLOAD CATLOUGE

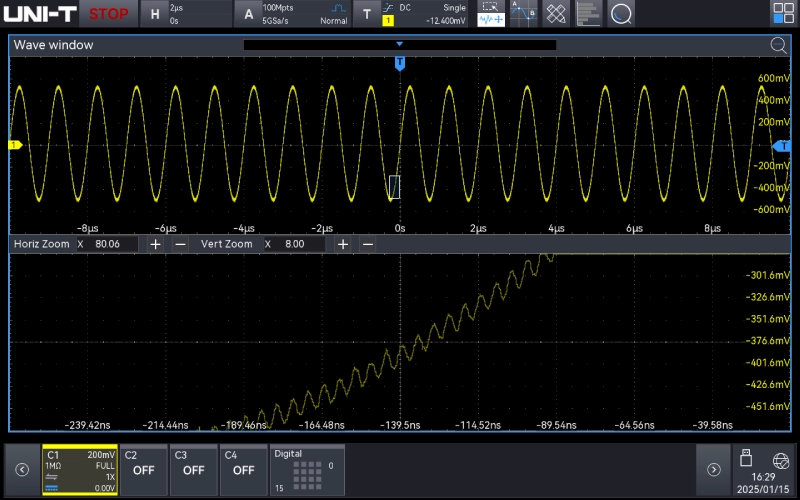

Enhanced resolution of 16-bit

Higher precision, lower noise floor. In 16-bit high-resolution mode, by combining 12-bit ADC with 4-bit ERES (enhanced resolution), the measurement accuracy is significantly improved, finely displaying the intricate details of waveforms. This effectively suppresses out-of-band noise and reduces the oscilloscope's inherent noise interference with the real signal, thereby ensuring a more precise measurement experience while increasing the sampling bits.

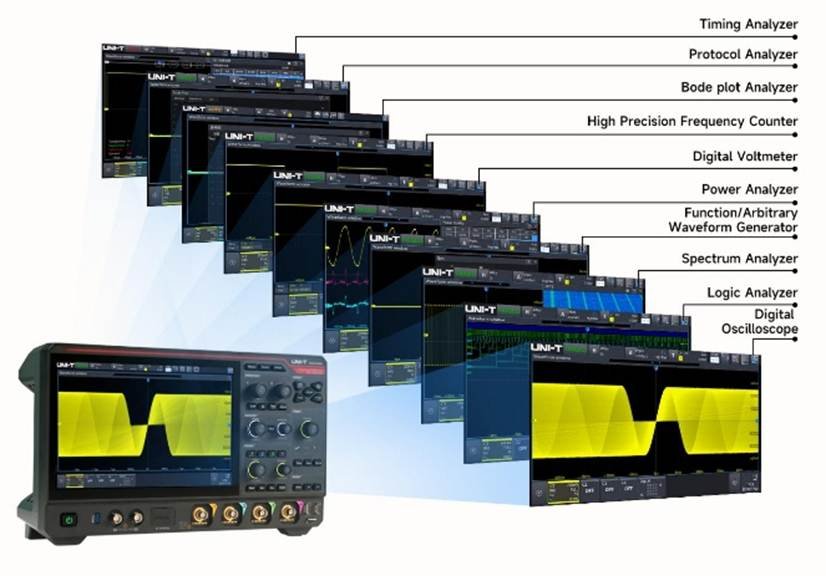

Versatile Testing Equipment

Oscilloscopes
Logic Analyzer
Function/Arbitrary
Waveform Generator
Spectrum Analyzer
Protocol Analyzer
Timing Analyzer
Power Analyzer
Bode plot Analyzer
High Precision Frequency Counter
Digital Voltmeter

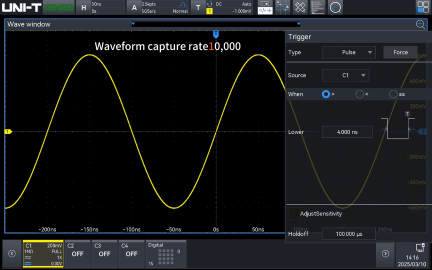

Ultra Phosphor 3.0

supports 8-channel parallel graph mapping, the processing rate is up to 20 Gbps, the waveform capture rate is up to 800,000 wfms/s, and up to 1,500,000 wfms/s in the sequence mode.

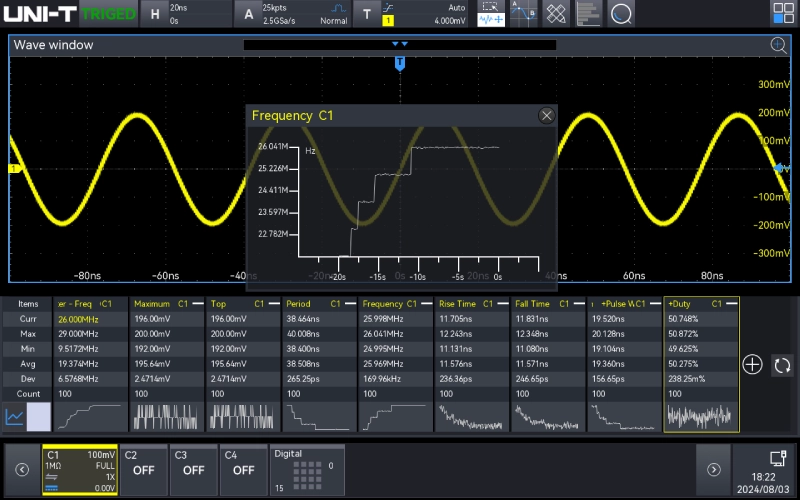

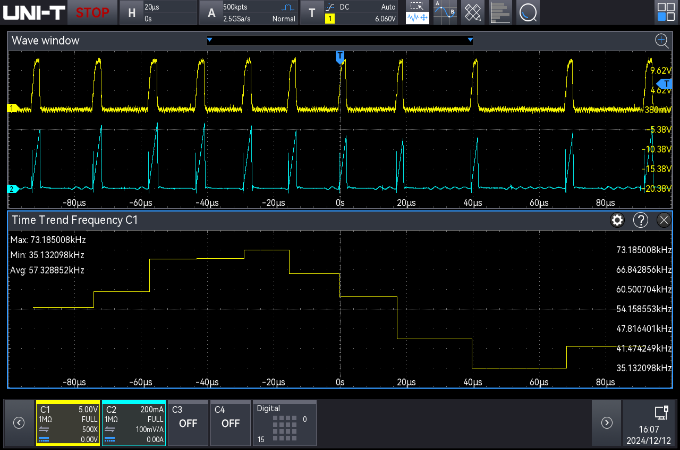

56 Types: Measurement, Statistics, Trend Graphs

56types of precise parameter automatic measurements covering multiple dimensions such as voltage, frequency, phase, and power. It also integrates advanced parameter statistics and trend graph visualization analysis functions, providing a comprehensive and multi-dimensional display of signal characteristic changes, achieving professional-level deep insights and efficient data interpretation.

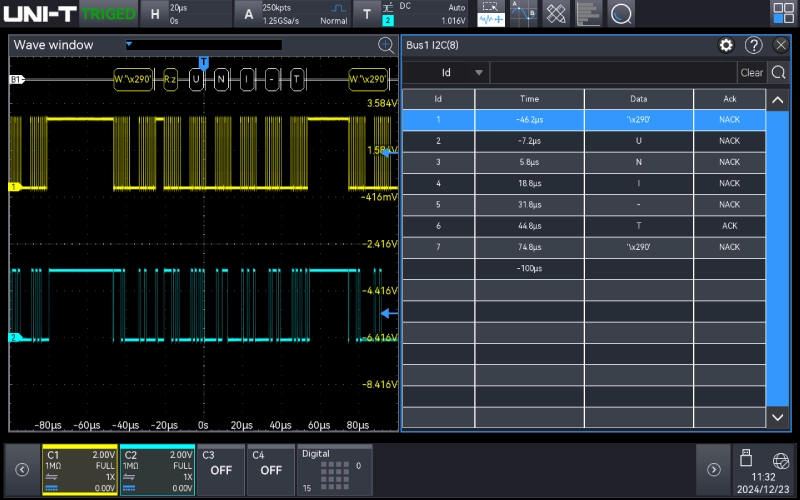

Protocol decoding and triggering

Supports 15 types of mainstream protocols, including

Embedded: UART, I2C, SPI ，I3C
Automobile: CAN, CAN-FD, CAN-XL，LIN, FlexRay, SENT
Audio: I2S (Audio-I2S, Audio-LJ, Audio-RJ)
Aerospace：MIL STD 1553、ARINC 429
Wireless communication：Manchester
Sensor：1-WIRE

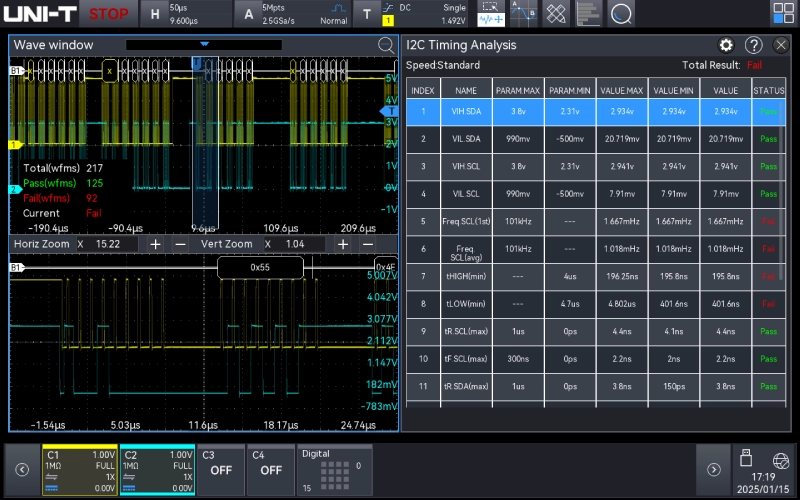

Timing analysis

MSO5000HD timing analysis function can analyze parameters like pulse width, amplitude, edge, setup time, and hold time for signals for I²C, SPI, I²S and CAN. Additionally, it supports exporting conformance test reports.

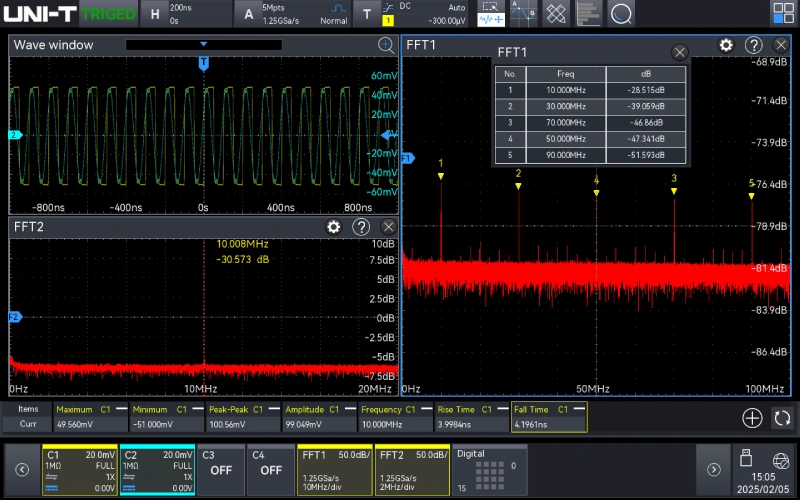

Spectrum Analyzer

Standard enhanced FFT with up to 4 Mpts
for 4-channel signal analysis
Frequency range: 0 to 2.5 GHz
Waterfall curve
4 traces and 4 detections
Mark type: Auto, manual, and threshold
Marker point list

Power Analysis

Input Analysis

Power Quality
Harmonic Analysis
Inrush Current
Switching Analysis
Switching Loss
Safe Operating Area (SOA)
Slew Rate
Steady-State On-Resistance
Output Analysis
Ripple Analysis
Modulation Analysis
Power Efficiency+

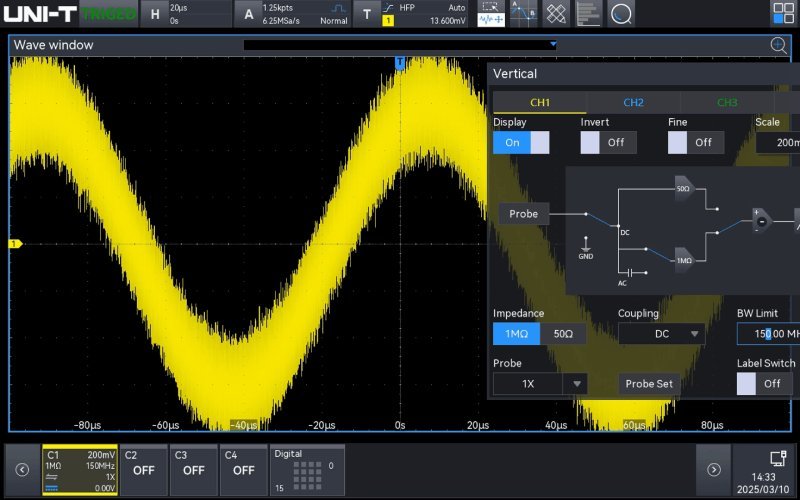

FIR filter

The bandwidth is continuously adjustable, effectively filtering out noise and interference within the 50 Hz to 500 MHz range.

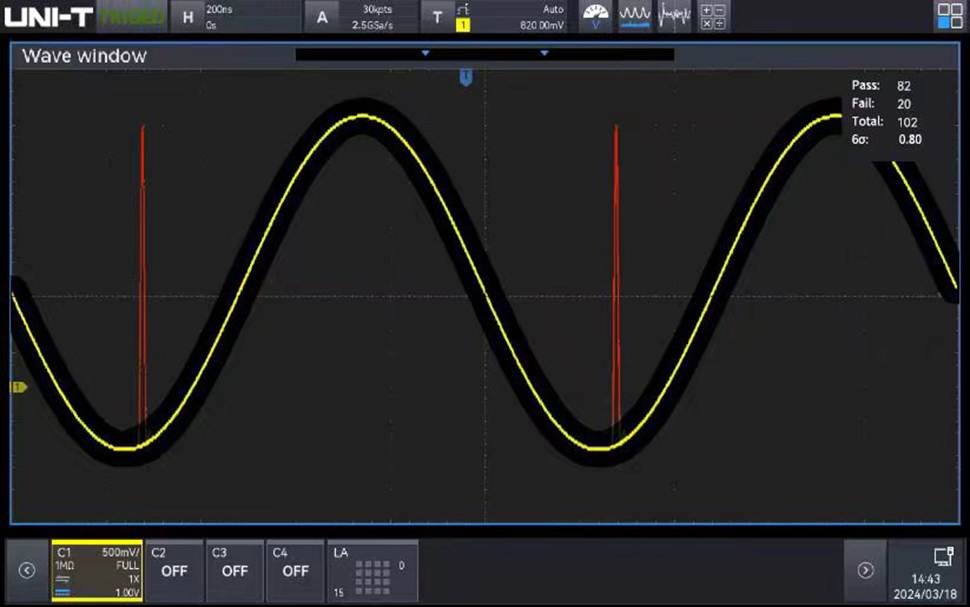

Hardware-accelerated mask testing: 6σ standard < 1s

The 6σ (Six Sigma) standard for electronic signals is a process with a defect rate of no more than 3.4 defects per million opportunities (DPMO). This means there are only 3.4 anomalies per 1,000,000 samples. With its ultra-high hardware capture rate, the hardware-accelerated template testing maintains the full capture rate of Ultra Phosphor 3.0, completing waveform tests that meet specific standards within 1 second (instead of several hours).

OPTIONS

Model	Description
UPO6000LP-BND	All Serial Bus Trigger and Decode Options (including EMBD, AUTO, Audio, MIL-STD, ARINC, Manchester)
UPO6000LP-AUTO	Automotive Serial Bus Trigger and Decode Option (including CAN, CAN-FD, LIN, FlexRay, SENT)
UPO6000LP-SENT	Automotive Sensor Bus Trigger and Analysis Option (SENT)
UPO6000LP-FLEX	Automotive Serial Bus Trigger and Analysis Option (FlexRay)
UPO6000LP-LIN	Automotive Serial Bus Trigger and Analysis Option (LIN)
UPO6000LP-CAN	Automotive Serial Bus Trigger and Analysis Option CAN
UPO6000LP-CANFD	Automotive Serial Bus Trigger and Analysis Option CAN-FD
UPO6000LP-AUDIO	Audio Serial Bus Trigger and Analysis Option (I2S, LJ, RJ, TDM)
UPO6000LP-ARINC429	Aerospace Serial Bus Trigger and Analysis Option (ARINC429)

ACCESSORIES

Model	Description
UT-PD1500	1.5GHz bandwidth, 10:1 attenuation ratio, ±4V dynamic range active differential probe
UT-PD2500	2.5GHz bandwidth, 10:1 attenuation ratio, ±4V dynamic range active differential probe
UT-PA1000	1GHz bandwidth, 10:1 attenuation ratio, ±4V dynamic range Single-ended active probe
UT-PA2000	2GHz bandwidth, 10:1 attenuation ratio, ±4V dynamic range Single-ended active probe
UT-P07A	Probe factor:(10:1) Bandwidth: 500MHz.voltage:600Vpp
UT-P08A	Probe factor:(10:1) Bandwidth: 350MHz.voltage:600Vpp
UT-P20	Passive probe: (100:1) Bandwidth: 250MHz. voltage: 1500V
UT-P21	Passive high voltage probe: (1000:1) Bandwidth: 40MHz voltage: DC 10kV/AC 7kVrms
UT-V23	High voltage probe:(100:1)Bandwidth: 100MHz voltage: 2000Vpp
UT-ISOT	Isolation transfomer for Bode plot application (Hardware)
UT-M13X	Oscilloscope Signal Protocol Demonstration Board
