Walk-In High & Low Temperature and Humidity Test Chamber

The inside chamber of the walk-in constant temperature and humidity test room can maintain the temperature and humidity values set by the user, and these temperature and humidity values can also be alternately changed through program settings. Used to test and determine the heat resistance, cold resistance, dry resistance, and moisture resistance of electrical, electronic, and other products and materials. It is widely used in industries such as electronics, electrical appliances, communication, instrumentation, vehicles, plastic products, metals, food, chemistry, building materials, medical, aerospace, etc.

REQUEST A QUOTE

Compare
Category:
Description

Core Technical Advantages

  • Temperature Control Precision: PID microcomputer control system, emphasizing minimal fluctuations
  • Uniformity: Unique air duct design (such as multi-blade circulating fans), ensuring consistent temperature and humidity in every corner of a large space.
  • Energy Efficiency Technology: Featuring variable frequency compressors or electronic expansion valves, it is energy-saving and cost-effective (reducing operating costs).
  • Material and Craftsmanship: Using stainless steel (SUS#304) inner liner, high-density polyurethane insulation layer, and modular assembly method for the storage board.

Safety & Reliability

  1. Personnel safety: Internal emergency escape door locks, obstruction prevention alarm.
  2. Equipment protection: Independent over-temperature protection switch, compressor overload protection, water shortage/dry burn protection, pressure relief port.
  3. Explosion-proof configuration: Gas sensor, explosion-proof door lock and explosion-proof window.

Model

TAHW-8m³

TAHW-10m³

TAHW-12m³

TAHW-15m³

TAHW-24m³

TAHW-30m³

Control system

Balanced temperature and humidity control system

Temp range

Max test temperature 80 ℃, 150 ℃

Min test temperature is -70 ℃- 40℃，- 20℃，0℃,  RT+5℃

Humidity range

20～95%R.H

Temperature fluctuation

±0.5℃

Humidity fluctuation

±2.5%R.H

Temperature uniformity

±2.0℃

Humidity uniformity

±5%R.H

Temperature deviation

±2.0

Humidity deviation

±3%R.H（≥75%R.H）/±5%R.H（<75%R.H）

Heating up time

1-20℃/min（customized）

Cooling time

1-20℃/min（customized）

Inner size(cm)

W

200

200

200

250

300

300

H

200

200

200

200

200

200

D

200

250

300

300

400

500

Outer size(cm)

W

230

230

230

280

350

350

H

235

235

255

255

255

255

D

400

430

500

550

650

750

Inner volume

8

10

12

15

24

30

Inner material

SUS304 high-grade stainless steel

Outer material

Plastic steel plate

Insulation material

High density polyurethane foam and glass fiber

Floor load capacity

500Kg/m3

Freezing system

Air cooled/water-cooled, stacked, fully enclosed/semi enclosed compressors, environmentally friendly refrigerants, (R404a/R23)

Controller

LCD color touch screen, Chinese/English display, program, communication function

Protector

Non fuse switch, compressor overpressure, overheating, overcurrent protection, overtemperature protection, fan overload protection, fuse, dry burning machine protector, water shortage protection switch, fault warning system, alarm

Power supply

AC380±10% 50HZ Three phase four wire protective grounding wire

Applications & Case Studies

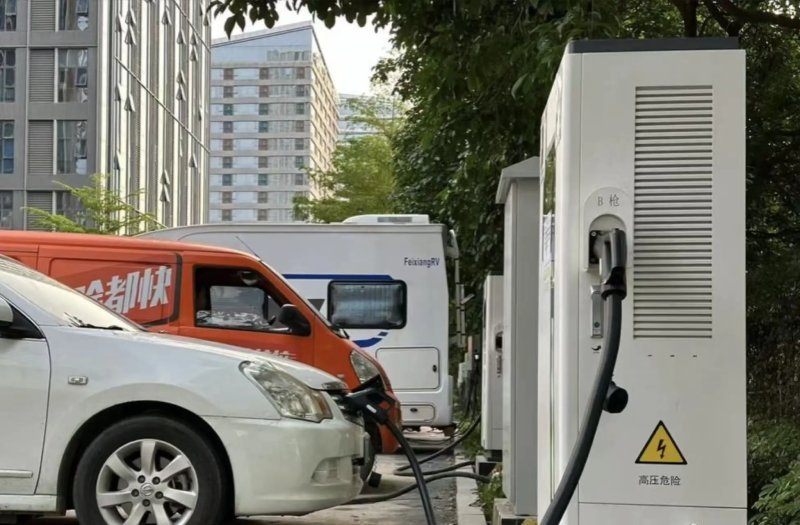

  • Automotive industry: Weather resistance tests for complete vehicles or large components.

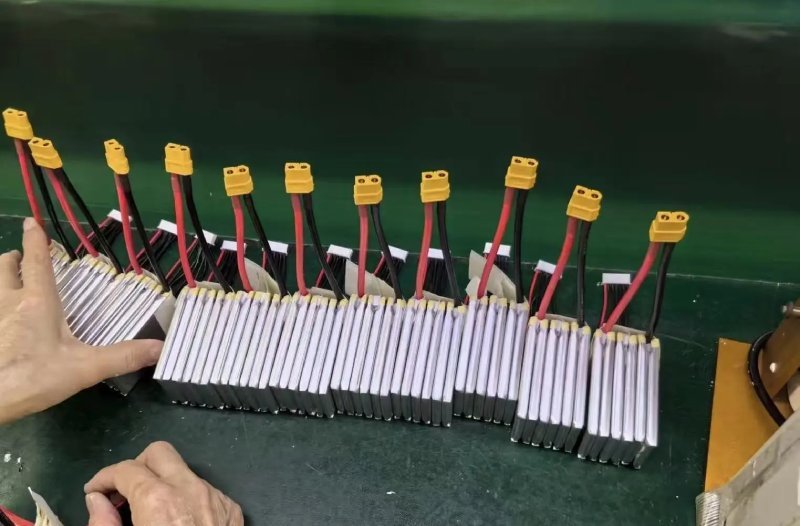

  • New energy/batteries: Extreme environment cycling tests for battery packs.

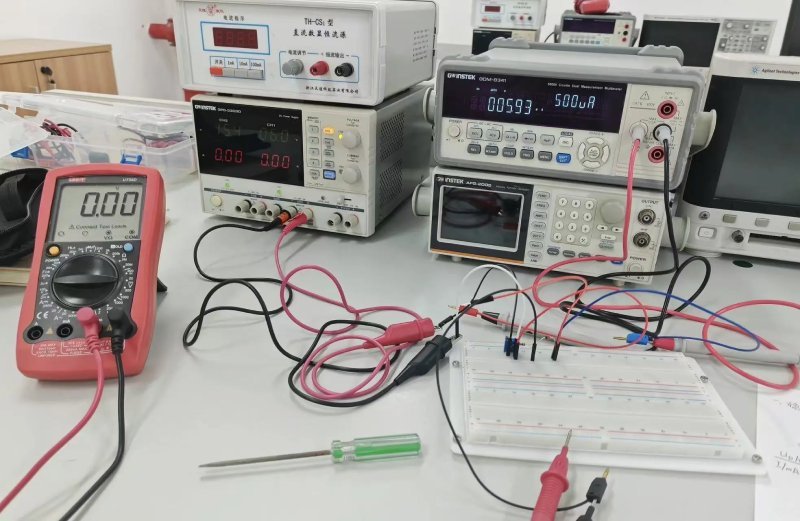

  • Electronics/electrical appliances: Full-load aging tests for communication base stations and large servers.

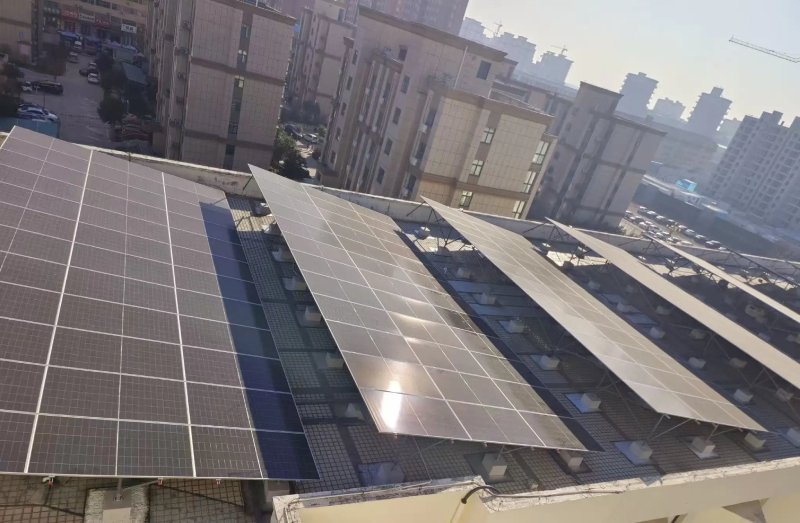

  • Photovoltaics/aerospace: Long-life simulation experiments for solar panels or aerospace equipment.
d82733eca35c32b1e5aab130024186ce
d1d5aec26776f57dbed7a7820ca0f49a
02ad79839a5964733b6a53648b27ae80
1b657ea627243bb0fdb3ff34ce1c5eb1

    Customization Services

    1. Size customization: From several cubic meters to several hundred cubic meters.
    2.  Load-bearing customization: Capable of supporting heavy vehicles or large heavy machinery.
    3.  Special openings: Size of the observation window, number and location of cable ports

    Can the walk-in chamber dimensions be customized to fit my specific facility?

    Absolutely. Our walk-in chambers feature a modular "sandwich" panel construction, allowing us to design the internal volume and external dimensions to your exact requirements. Whether you need a compact 2m³ room or a massive 100m³+ facility for vehicle testing, we can tailor the height, width, and depth to optimize your lab space. We also offer custom door sizes and reinforced flooring for heavy specimens.

    How does the chamber maintain stability if my test specimen generates significant heat?

    This is a critical factor in AI server and EV battery testing. Our systems are engineered with High-Capacity Refrigeration Units and advanced PID control logic to compensate for "active heat loads." During the technical consultation, we calculate your specimen's maximum wattage (e.g., 5kW, 10kW+) to ensure the cooling system is sized correctly to maintain your target temperature even when the product is running at full power.

    What safety features are in place to protect personnel working inside the chamber?

    Safety is our top priority. All our walk-in chambers are equipped with an Internal Emergency Release Handle (glow-in-the-dark) that allows personnel to exit even if the door is locked from the outside. Additionally, we install Emergency Stop buttons inside the chamber, an Internal Lighting system, and audio-visual alarms to alert outside operators in case of an incident. For high-risk testing, oxygen sensors and view-windows are also available.
