Premium Imported Core Components Equipped with Tecumseh/Secop compressors, Danfoss refrigeration parts, Vaisala humidity sensors and Schneider electric components. Service life over 15 years, with 10-year spare parts supply guarantee.
Energy-saving Refrigeration System Independent heating & cooling operation without ineffective offset, saving 45% power consumption vs conventional chambers to cut long-term electricity costs.
One-stop Supporting Service Pre-commissioned before delivery. Nationwide on-site installation & two free operation training sessions. 1-year full machine warranty, 2-hour online response, on-site after-sales service within 24–48 hours for local customers.
Customization Available Optional upgrades: -70°C low temperature, higher load capacity, explosion-proof version, and special fixtures for battery testing.

Specification

Name	High and low temperature and humidity test chamber
Model	TATH-33LC
1. Inner box size	W350 * H300 * D320（mm）
2. Outer box size (approximate)	W500 * H760 * D820（mm）
3. Observation window size (approximate)	W200 * H250 （mm）* 1PCS
4. Equipment power	220V50hz 2.2KW RCCB：9.5A (1P+N)
5. Equipment weight	110KG
6. Noise	≤ 65 dB(A), measured at the center of the cabinet door, 1 meter in front of it, and 1.2 meters above the ground.
Temperature indicator：
1. Temperature range	-80℃～180℃
2. Temperature uniformity	≤2℃
3. Temperature fluctuation	≤±0.5℃
4. Temperature deviation	≤±1℃
5. Heating rate	≥3℃/min（Average throughout (empty load)
6. Cooling rate	≥1℃/min（Average throughout (empty load)

What samples are suitable for TATH-33LC chamber?

This 33L benchtop chamber is ideal for small specimens: lithium battery samples, electronic components, PCBs, sensors and miniature automotive parts.

What power supply does the machine require?

Standard: Single-phase 220V. 110V version is available for overseas labs. No 380V industrial power needed.

Can parameters be customized?

Yes. Optional upgrades: -70℃ ultra-low temperature, higher load capacity, cable ports, explosion-proof structure and communication protocol customization.

What is the advantage compared with ordinary small test chambers?

We adopt imported compressors, Vaisala sensors and Schneider electric parts. Independent heating & cooling system saves 45% energy with stable temperature uniformity.

Need Help?

We are here!

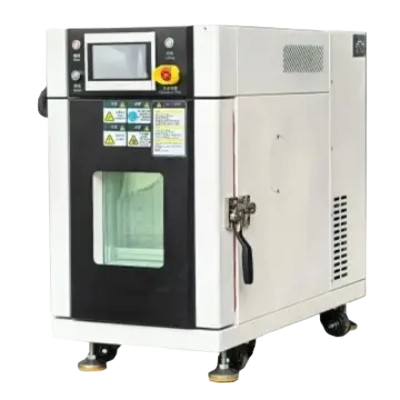

Benchtop Climatic Chamber-TATH-33LC

TATH-33LC Benchtop High and Low Temperature Humidity Test Chamber, designed for small sample R&D and small-batch reliability testing. Compact footprint with high-precision temperature & humidity control, operated by 220V power supply. Ideal for lithium battery samples, electronic components, automotive sensors and university research labs.
