Ainuo Instrument Co., Ltd. has been dedicated to the research and development of electrical safety analyzers for over 30 years and has participated in drafting 16 national standards and industry calibration regulations for safety analyzers. The AN9640H series efficient electrical safety tester features comprehensive functions, high reliability, and high cost-effectiveness, meeting the comprehensive safety performance testing needs for various production lines, including household appliances.
- Seven-in-one: ACW/DCW/IR/GB/LC/PW/ST
- High precision: 1% accuracy for safety compliance analyzer, 0.2% accuracy for power
- High speed: GB and ACW/DCW/IR in parallel, fast switching, fast test
- Automation: RS232/LAN/USB/BARCODE/PLC/ALARM/REMOTE interface
- Informatization: Optional industrial PC and ESRS software for data storage and MES integration
| Model | AN9640H(F) | AN9651H(F) | AN9651H-C(F) |
| AC Withstand Voltage(ACW) | 5kVac/100mA (500VA output capacity, 200mA short-circuit current) (optional dynamic ACW) | ||
| DC Withstand Voltage(DCW) | 6kVdc/20mA | ||
| Insulation Resistance(IR) | 3kVdc/50GΩ | ||
| Ground Bond Resistance(GB) | 40Aac/600mΩ | ||
| Leakage Current(LC) | 20mA leakage current, MD-A network (lEC60990 Fig. 4, up to 8 networks), RMS measurement | ||
| Power Test(PT) | 300V/20A/6kW (optional 10kW) | ||
| Starting Test(ST) | 300V/25A | ||

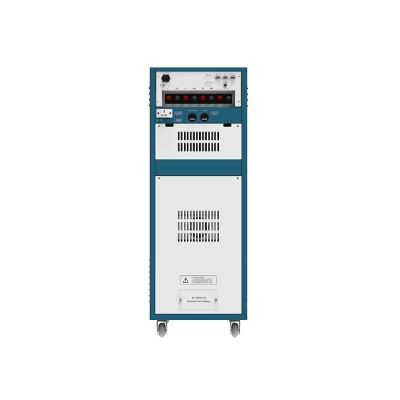

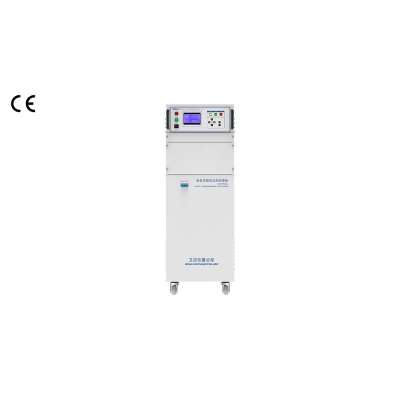

| DUT Power Supply | An external isolated power supply is required(an optional built-in 500VA power supply) | Standard 6kVA variable frequency power supply cabinet | |
| Parallel Test | Parallel GB, IR/ACW/DCW test | ||
| Display Operation | LCD, numeric keypad | PC/ESRS measurement and control system | |
| Control Interface | RS232/LAN (optional)/USB (store)/BARCODE/PLC/ALARM/REMOTE interface | ||
| Standard Accessories | Test box (3m), test clamp (3m), foot switch (2.5m), alarm lamp (0.8m), auxiliary power cable (1.9m) | ||
| Optional Accessories | Tester calibrator, barcode scanner, label printer | ||
| Dimensions(W*H*D mm) | 426*177*550 | 483*1350*600 | |
| Over 30 years of industry experience, meeting the test needs of more segmented industries, and complete all tests with just one click and one wiring.
- Safety of household and similar electrical appliances (IEC60335-1)
- Audio and video, information technology, and communication technology equipment (IEC62368-1)
- Safety requirements for electrical equipment for measurement, control, and laboratory use (IEC61010-1)
- Luminaires (IEC60598-1)
- Electric vehicle conductive charging system
