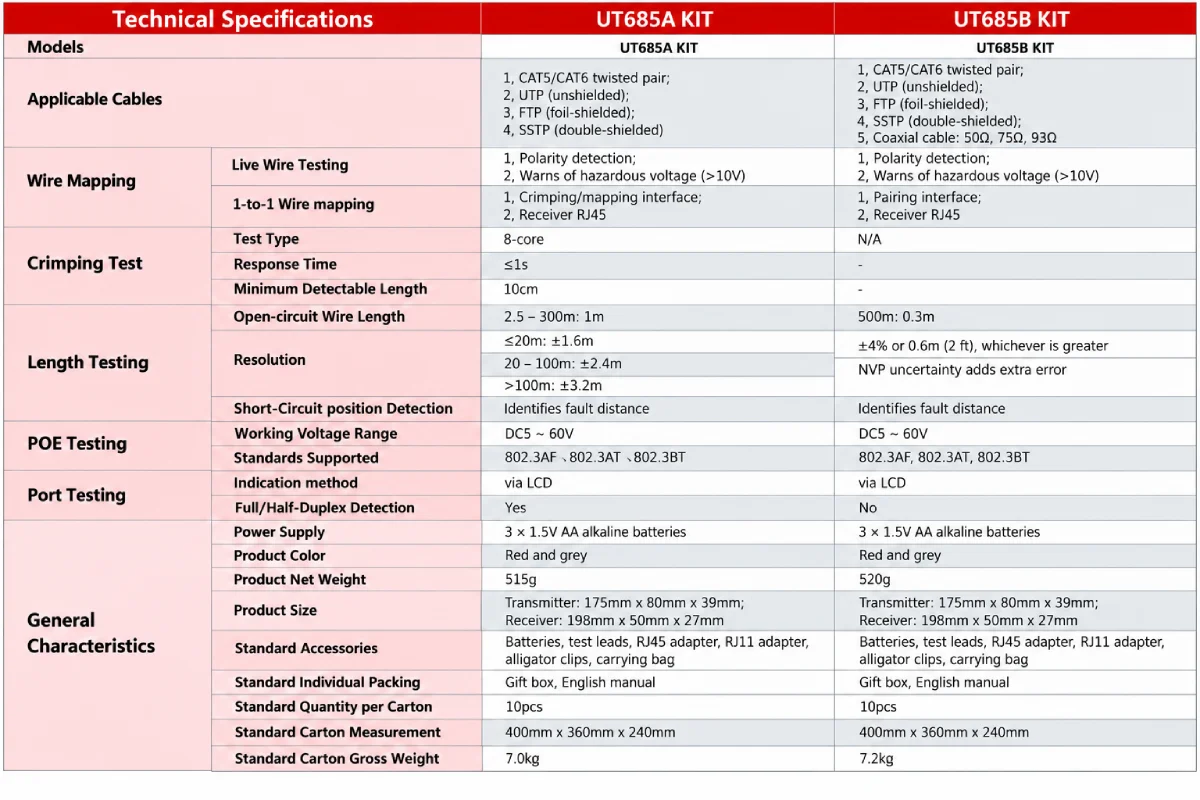

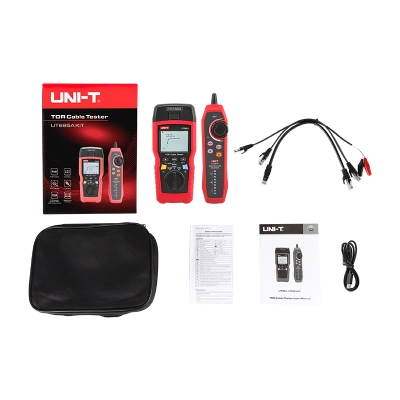

Features of UT685A KIT TDR Cable Tester
Certificates ：CE/RoHS
- Multi-function all-in-one
- Applicable Cables:
a) CAT5/CAT6 twisted pair
b) UTP (unshielded)
c) FTP (foil-shielded)
d) SSTP (double-shielded)Wire mapping - Wire Mapping:
a) Polarity detection;
b) Warns of hazardous voltage (>10V)

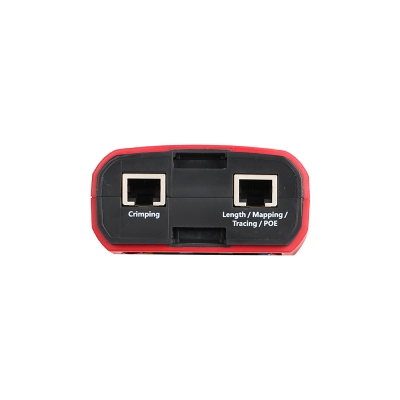

c) Crimping/mapping interface;

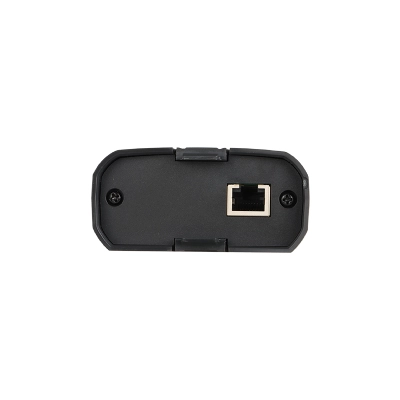

d) Receiver RJ45 - Crimping test: fast response within 1s
- Length testing:
a) 2.5m~300m @1m accuracy
b) ≤20m: ±1.6m; 20–100m: ±2.4m; >100m: ±3.2m
c) Identifies fault distance - POE testing: DC5~60V @ 802.3AF、802.3AT、802.3BT
- Port flashing:
a) 10M/100M/1000M switch,
b) Full/Half-Duplex Detection

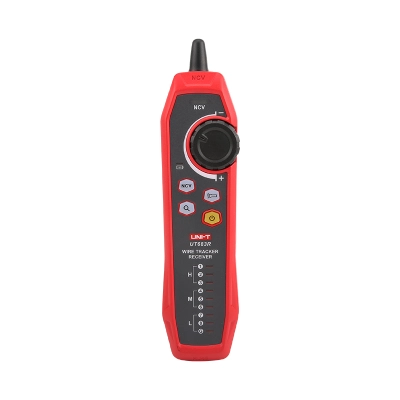

c) Checks Ethernet port connection status - Wire tracing: RJ11 @ 3000m & RJ45 1000m
- NCV testing
- Type-C charging port
Applications of UT685A KIT TDR Cable Tester

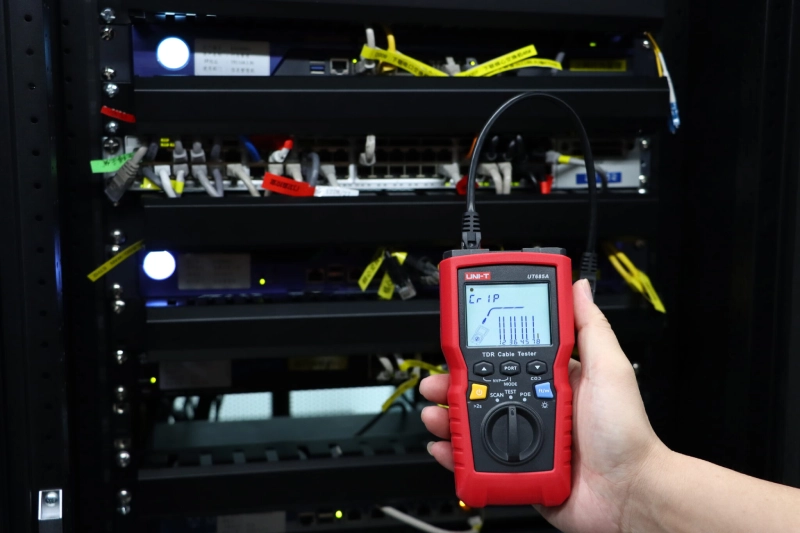

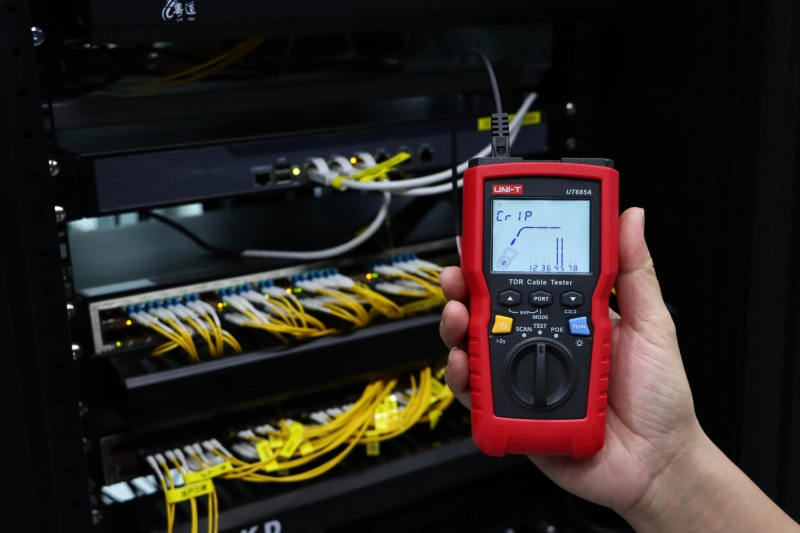

UT685A KIT can test various types of cables (including twisted pair cable, coaxial cable, and POE network cable): you can find the cable, detect the cable length, and line sequence, and confirm whether it is POE and POE standards. Plus, it integrated RJ11, RJ45, and coax test ports to support virtually any low-voltage cable testing without needing awkward adapters. Effectively reduce the operator’s ineffective testing and improve work efficiency, which makes high-quality installations more efficient and easier to troubleshoot.
