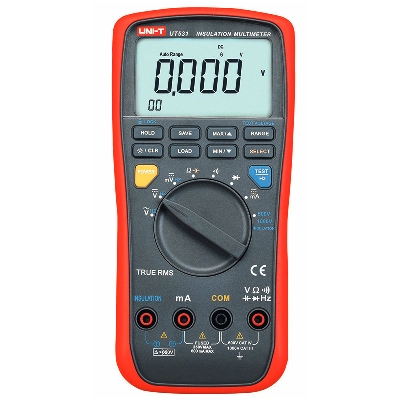

UT531 Insulation Resistance Multimeter
UT531 Insulation Resistance Multimeter

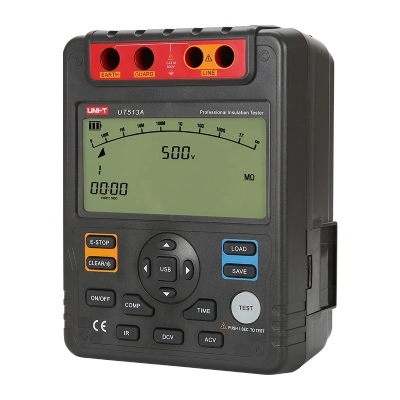

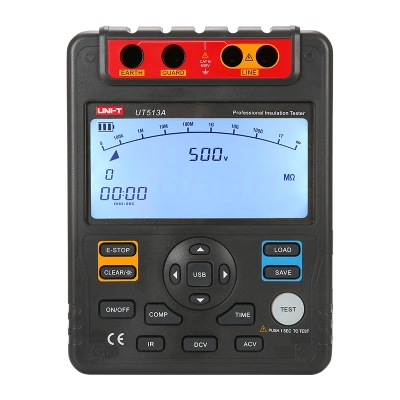

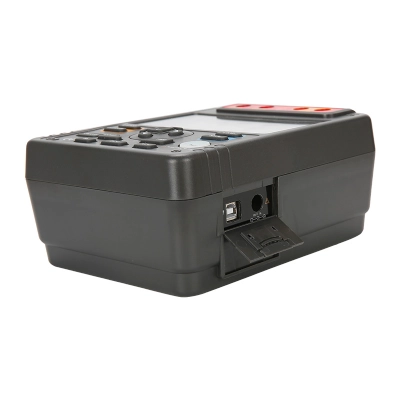

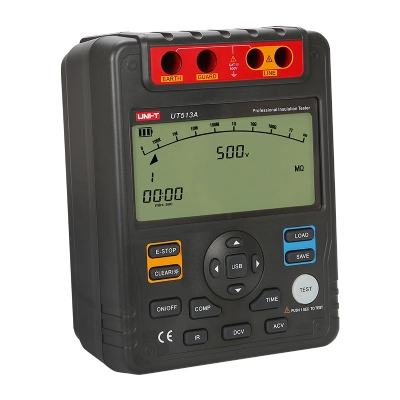

UT510 Series Insulation Resistance Testers

UT510 series testers can measure insulation resistance of large transformers, generators, high-voltage motors and more. UT510 series can also measure PI, DAR and other important specifications. Measured data can then be analyzed through PC software. UT513A can produce test voltage up to 5kV.

Models in UT510 series: UT511, UT512, UT513A

REQUEST A QUOTE

Compare
Categories: , , ,
Description

Features of UT510 Series Insulation Resistance Testers

Certifications: CE, UKCA

  • Large 9999 display with 30-segment analog bar graph
  • PI/DAR measurements
  • Comparison, upper and lower limit functions
  • Continuous measurement mode
  • Auto power off
  • 18-group data storage
  • Backlight
  • Auto current discharge and high-voltage output alarm
  • Time measurement mode, auto measure within 15 minutes
  • Low battery and over range indications

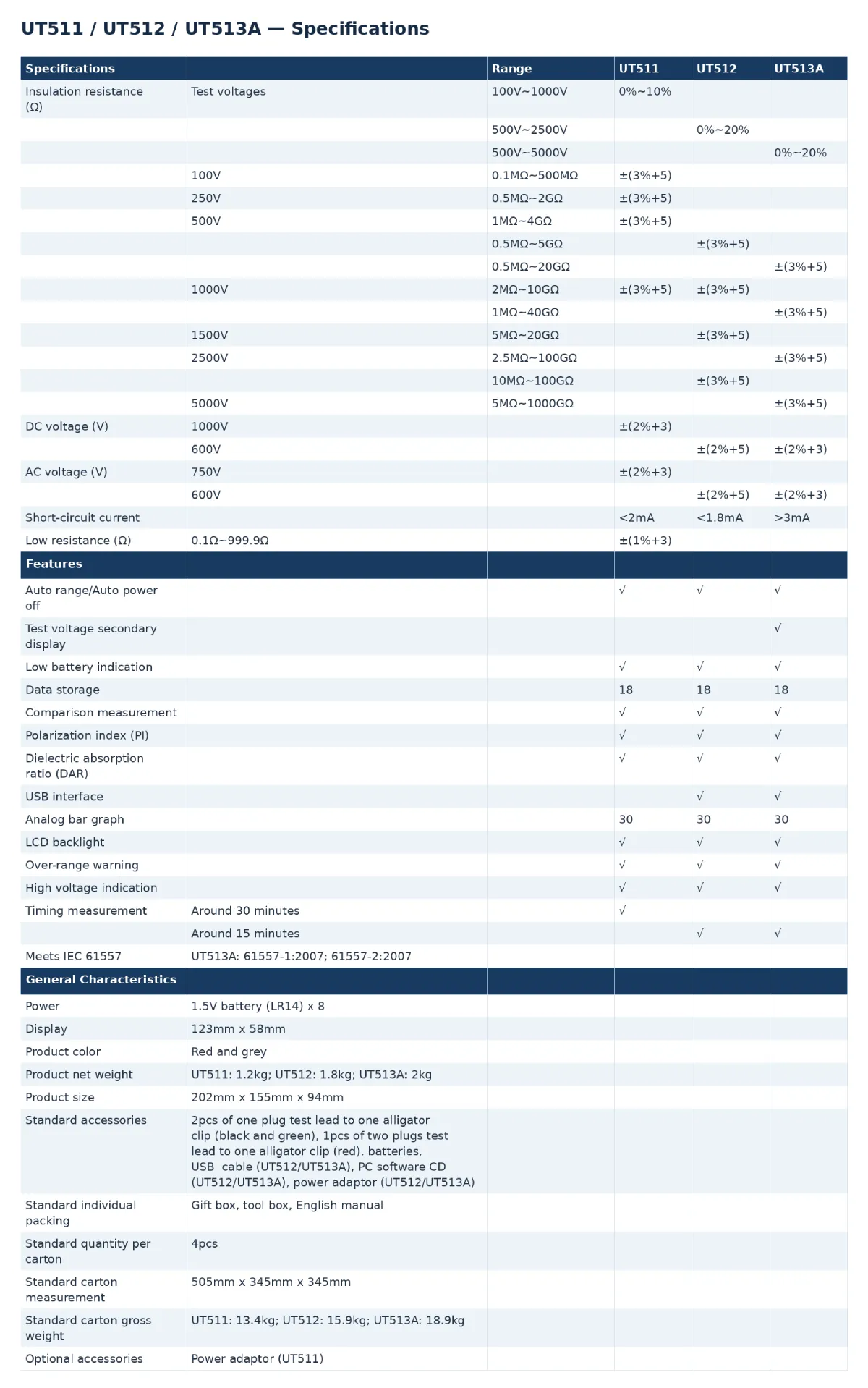

UT511/UT512/UT513A | Datasheet

UT512 | User Manual

UT511 | User Manual

UT513A | User Manual

UT512 | Software Instruction

UT513A | Sofware Instruction
