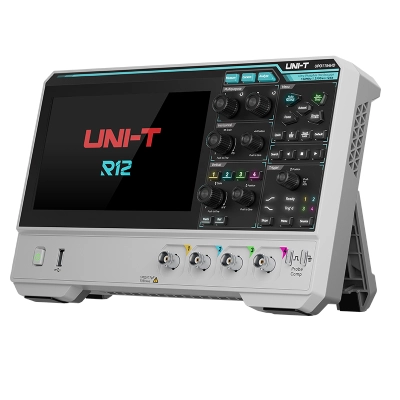

UPO1000HD Series

UPO1000HD Series

High-Resolution UPO1000HD series high-resolution oscilloscope has the maximum bandwidth of 150 MHz, the maximum sampling rate of 1.25 GSa/s, and is equipped with 4/2 analog channels , with the memory depth of up to 100 Mpts. High-Resolution UPO1000HD series adopts exclusive Ultra Phosphor 3.0 technology, achieving the waveform capture rate of up to 100,000 wfms/s, with 256 levels of gray temperature colors, and features an innovative digital trigger system with high trigger sensitivity and low jitter.

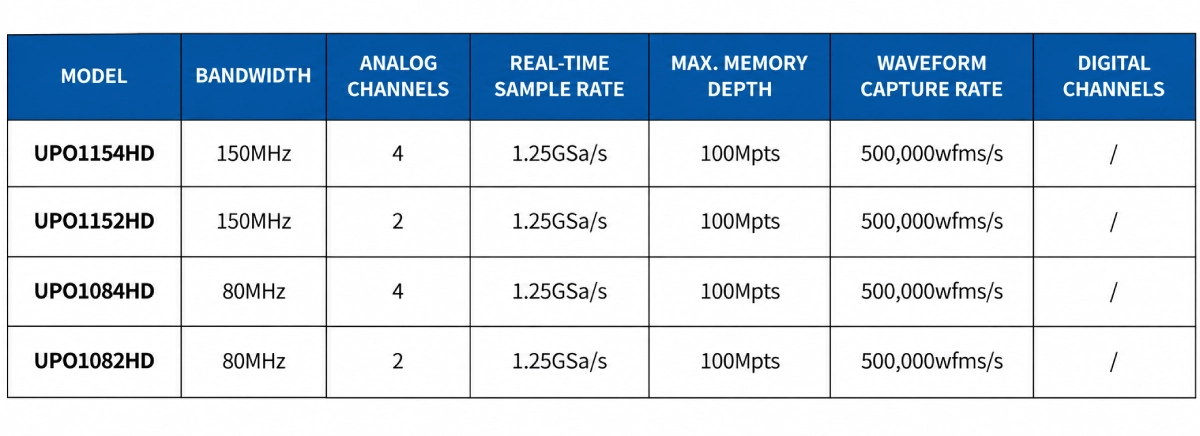

80 MHz~150 MHz

BANDWIDTH

2/4

ANALOG CHANNELS

1.25GSa/s

REAL-TIME SAMPLE RATE

100Mpts

MAX. MEMORY DEPTH

500,000wfms/s

WAVEFORM CAPTURE RATE

/

DIGITAL CHANNELS

REQUEST A QUOTE DOWNLOAD CATLOUGE

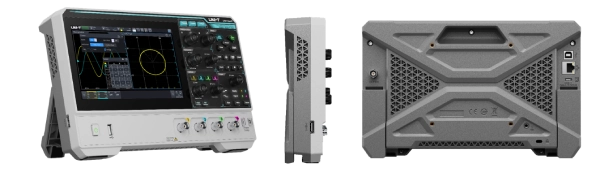

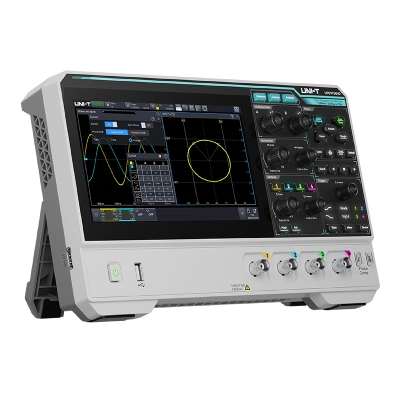

Brand New Appearance Design

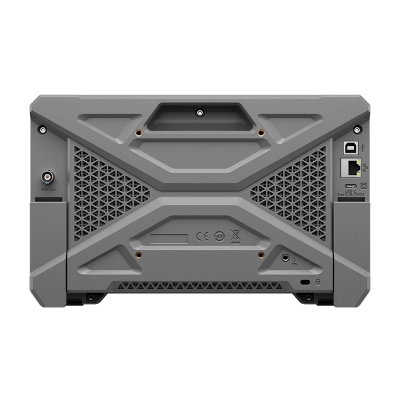

Double-sided slim design for a modern and compact factor
Dimensions：28.2cm×17.5cm×4.9cm

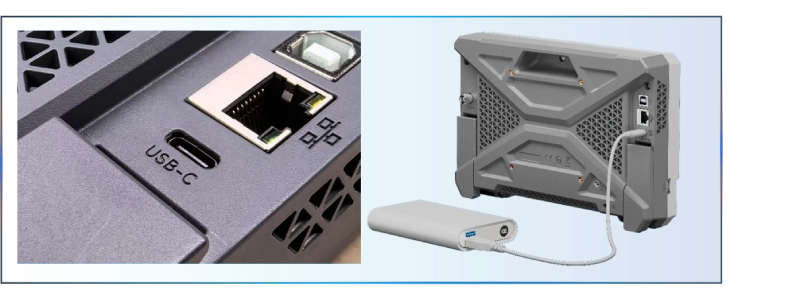

Type-C for Power Supply

UPO1000HD series adopts the latest Type-C power supply method. When no power source is available outdoors, it can be powered by a portable charger

12-Bit High-Resolution ADC

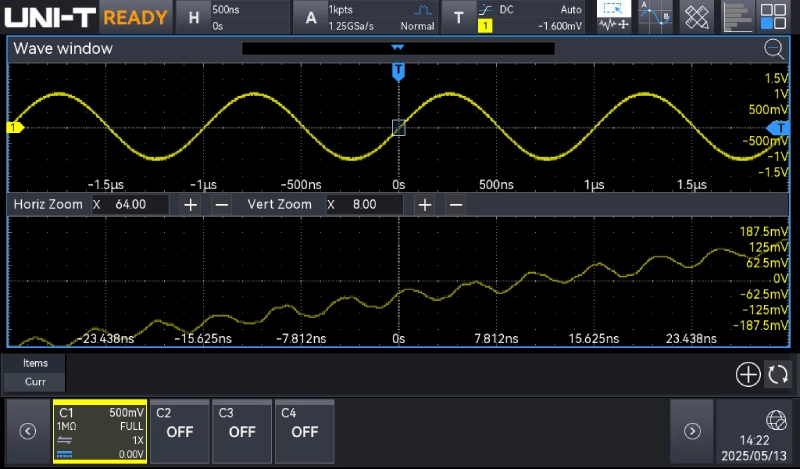

12-bit high-resolution ADC sampling has a quantization level of up to 4096, which is 16 times that of a traditional 8-bit ADC, allowing for better restoration of waveform details.

Versatile Testing Equipment

Oscilloscopes
Spectrum Analyzer
Protocol Analyzer
Power Analyzer
High Precision Frequency Counter
Digital Voltmeter

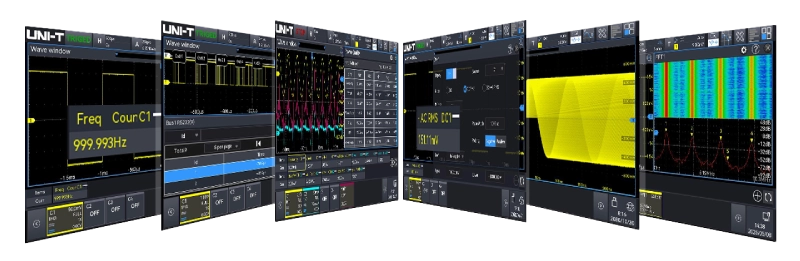

Ultra Phosphor 3.0

Supports 8-channel parallel graph mapping, the processing rate is up to 20 Gbps, the waveform capture rate is up to 100,000 wfms/s, and up to 500,000 wfms/s in the sequence mode.

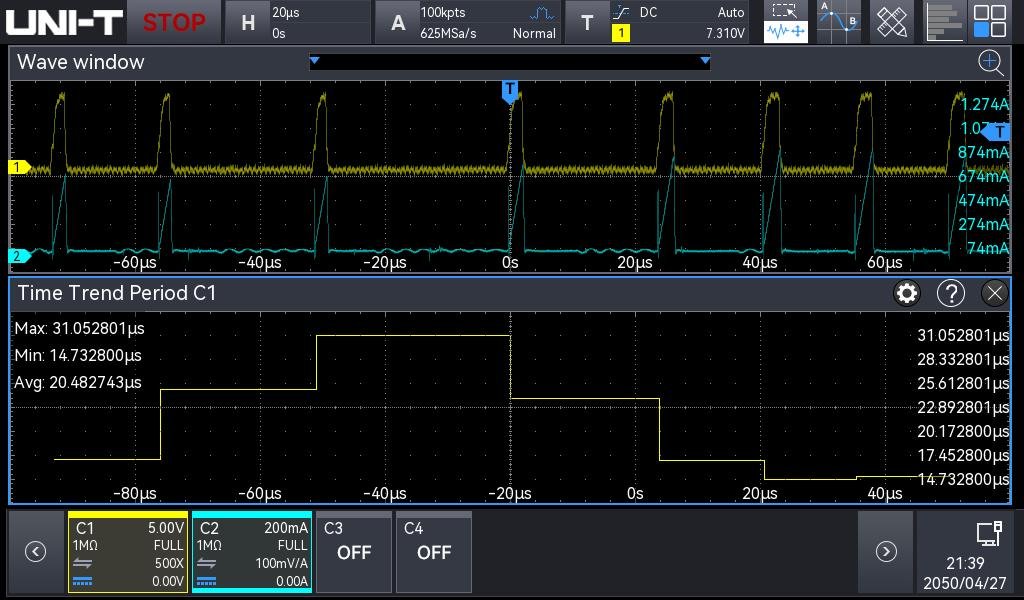

56 Types: Measurement, Statistics, Trend Graphs

56 types of precise parameter automatic measurements covering multiple dimensions such as voltage, frequency, phase, and power. It also integrates advanced parameter statistics and trend graph visualization analysis functions, providing a comprehensive and multi-dimensional display of signal characteristic changes, achieving professional-level deep insights and efficient data interpretation.

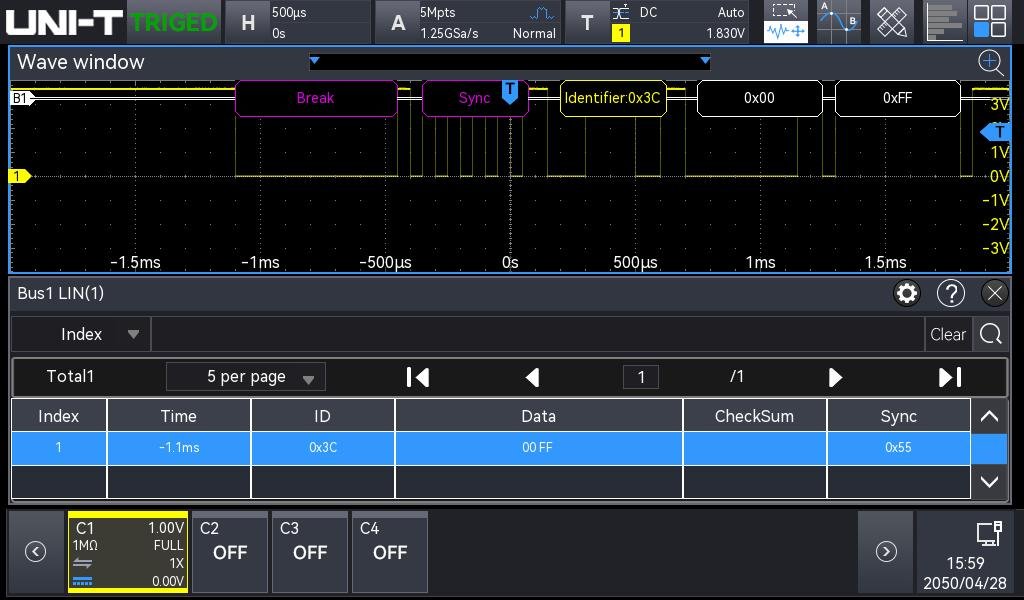

Protocol decoding and triggering

Supports 5 types of mainstream protocols, including

Embedded: UART, I2C, SPI
Automobile: CAN, LIN

Spectrum Analyzer< 1s

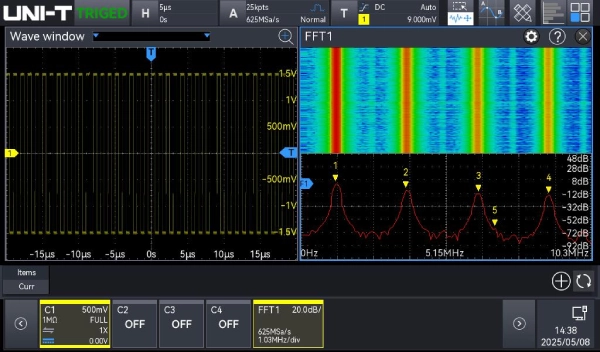

Standard enhanced FFT with up to 1 Mpts for 4-channel signal analysis
Frequency range: 0 to 625 MHz
Waterfall curve
4 traces and 4 detections
Mark type: Auto, manual, and threshold
Marker point list

Power Analysis< 1s

Input Analysis

Power Quality
Harmonic Analysis
Inrush Current Switching Analysis
Switching Loss
Safe Operating Area (SOA)
Slew Rate
Steady-State On-Resistance Output Analysis
Ripple Analysis
Modulation Analysis
Power Efficiency
Transient response
ON/OFF time

OPTIONS

Model	Description
UT-P04	Probe factor:(10:1) Bandwidth: 100MHz.voltage:600Vpp
UT-P20	Passive probe: (100:1) Bandwidth: 250MHz. voltage: 1500V
UT-P21	Passive high voltage probe: (1000:1) Bandwidth: 40MHz voltage: DC 10kV/AC 7kVrms
UT-V23	High voltage probe:(100:1)Bandwidth: 100MHz voltage: 2000Vpp
UT-P30	Differential probe:(10:1/100:1) Bandwidth: 100MHz differential voltage: 800Vpp
UT-P33	Differential probe:(1000:1/100:1) Bandwidth: 70/50MHz differential voltage: 14KVpp
UT-P35	High voltage Differential probe:1:50，130V(DC+peakAC); 1:500,1300V(DC+peakAC),Bandwidth:50MHz,Precision:2%
UT-P40	Conversion ratio:50mV/A, 5mV/A, Current range : 0.4A~60A,Frequency: DC~100kHz voltage: 600Vrms
UT-P43	Current range :20A AC/DC, Frequency: DC~25MHz,Conversion ratio:100mV/A
UT-P4030D	30A/ DC～100MHz High frequency current probe Range：30A/5A Freq range：DC~100MHz Rise time：≤3.5ns
UT-P4100A	100A/600kHz Low frequency current probe Range：100A/10A Freq range：DC~600kHz Rise time：≤583ns
UT-P4500	500A/ DC～5MHz High frequency current probe Range：500A/75A Freq range：DC~5MHz Rise time：≤70ns
UT-M13X	Oscilloscope Signal Protocol Demonstration Board
