ANPA4000(F) Series is a multi-channel, high-precision power analyzer that supports simultaneous measurement on 1 to 8 channels and can be flexibly configured for single-phase, three-phase, and other modes.
It features FPGA+ARM dual-core processing with 16‑bit high‑speed AD converters, achieving a basic accuracy of 0.03% of reading + 0.05% of range.
The instrument offers a wide frequency band (DC, 0.5 Hz to 1 MHz), multi‑channel harmonic analysis (up to the 500th order), motor measurement, efficiency calculation, energy accumulation, and other comprehensive functions. Standard current input is 30 A, with optional 5 A and external sensor inputs available.
It provides a full touchscreen experience and supports custom data storage and export. The series is widely used in photovoltaic inverters, electric vehicles, charging stations, motor test benches, and switching power supplies.

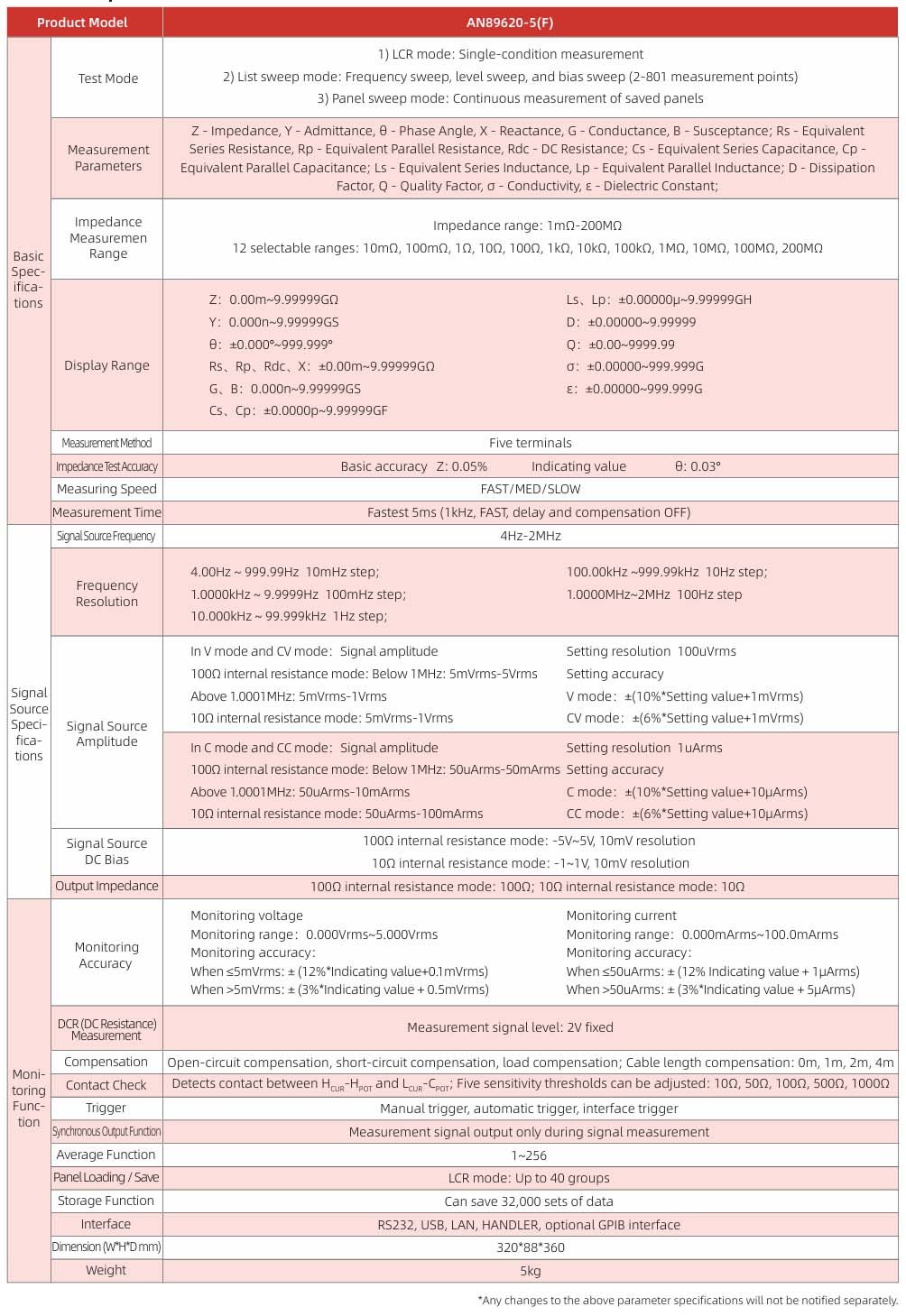

Impedance measurement and parasitic parameter analysis of resistors;
Impedance measurement, dissipation factor (tan δ), and parasitic parameter analysis of capacitors;
Impedance, Q parameter, and parasitic parameter analysis of inductors and transformers;
Parasitic parameter measurement of transistors and integrated circuits;
Static capacitance, loss, and resonant frequency measurement of piezoelectric devices;
Impedance evaluation of switches, relays, and cables;
Conductivity and dielectric constant measurement of dielectric and semiconductor materials.
