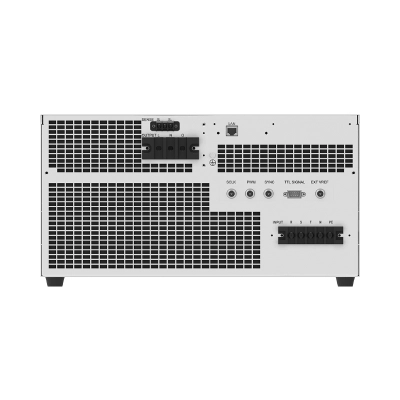

Programmable AC Power Source

The AN61(F) Series programmable AC power source adopts SPWM technology, digital processing technology, and high-power switching power supply technology, and it can output AC, DC, and AC+DC power, providing precise power input for AC load, DC load, rectifier load, etc. With the ability to provide 3-4 times peak current, it is the best instrument for measuring surge current and can set waveform switch-on and switch-off angles for testing surge current and output maintenance time. It can also set the rate of change of voltage and frequency to scan the range of power input specifications for the object to be tested. The power supply can simulate abnormal instantaneous rise, drop, short circuit, jitter, and other phenomena in the power grid, and simulate distortion of the mains power waveform through harmonic or interharmonic overlay functions. It can also provide accurate and fast measurements of power parameters and harmonics. The AN61(F) Series Programmable AC Test Power Supply has excellent power output quality and is widely used in power electronics, special equipment, civil aviation electronics, IEC standard tests, and other industry laboratories and production lines. The AN61(F) Series Programmable AC Test Power Source has powerful programmable functions and can complete IEC61000-4-11 (pre-certification test)/-4-13/-4-14/-4-28 regulatory immunity tests. In addition, with programmable output impedance, it can be combined with a power analyzer to achieve IEC 61000-3-2/-3-3 harmonic current limitation and flicker regulatory tests, making it the best choice for IEC regulatory tests.
