    Home AINUO Motor Test Scheme 8P(F) Series Motor Performance Tester
    Partial Discharge (PD) Tester
    Partial Discharge (PD) Tester
    Back to products

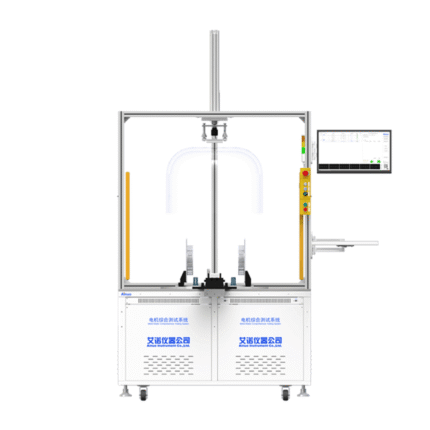

    AN8A02(F) Series Vacuum Wire Damage Testing System
    AN8A02(F) Series Vacuum Wire Damage Testing System

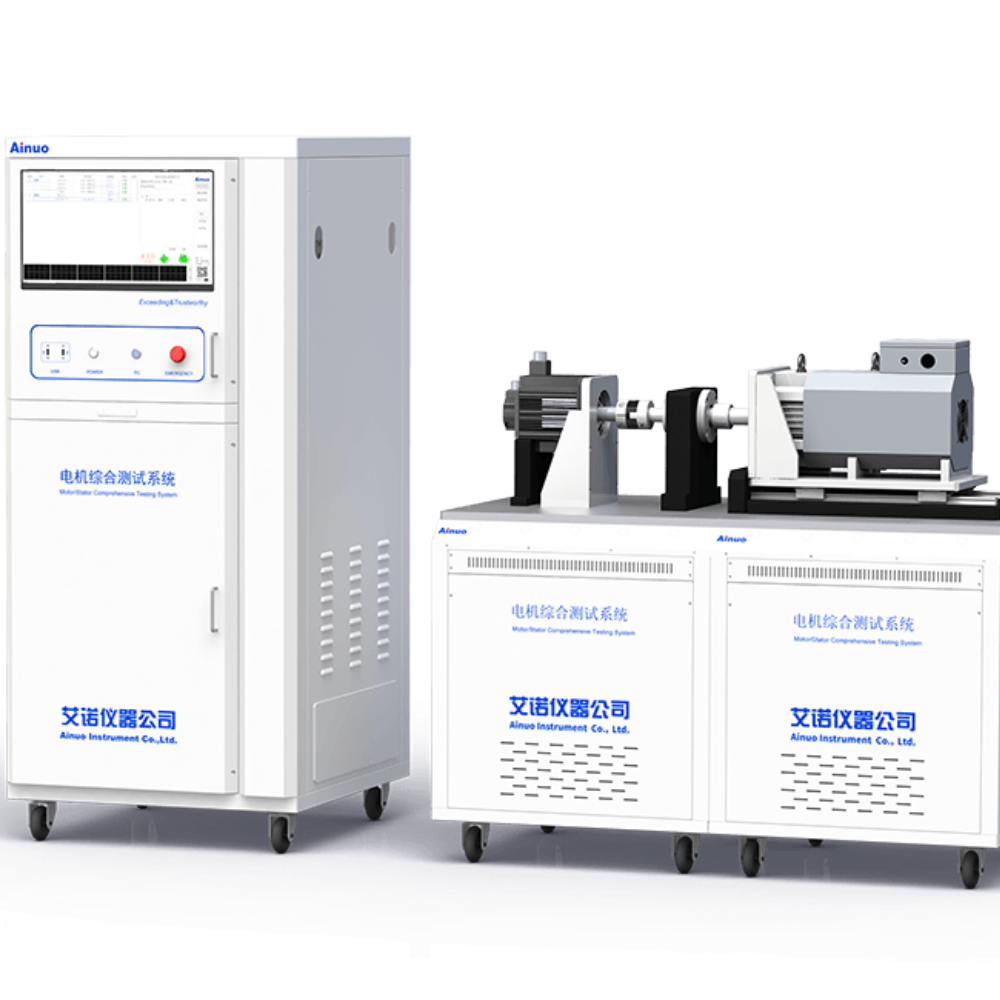

    8P(F) Series Motor Performance Tester

    Model:

    8P(F) Series

    Application:

    New energy vehicle motors, robot motors, home appliance motors, industrial motors, and automation control motors.

    REQUEST A QUOTE     DOWNLOAD CATLOGUE

    Compare
    Categories: AINUO, Motor Test Scheme
    Share:
    • Description
    Description

    High bandwidth, high-precision electrical parameter measurement, precision loading control, accurately acquire the changes in electrical parameters during the operation of the motor, identify weak quality defects, improve detection capabilities, applicable to the detection of motor quality characteristics and mechanical characteristics.

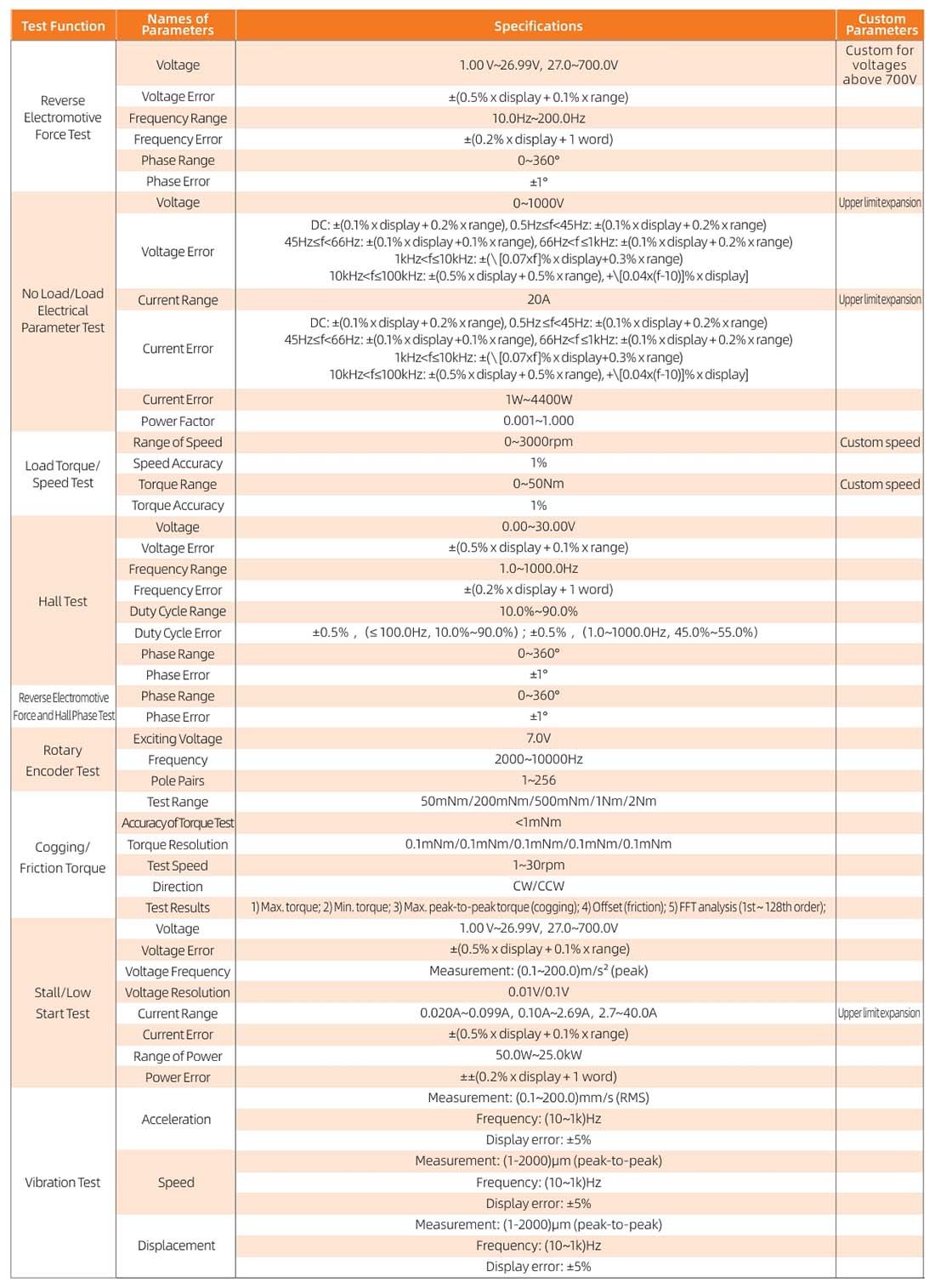

    • Reverse electromotive force test, no-load/load test (voltage, current, power, efficiency), speed/torque test, position sensor test (Hall, magnetic encoder, optical encoder, rotary encoder), cogging/friction torque, stall/low start test, vibration and noise detection, NVH, etc.
    • Multi-level: The system power module has multi-power control and testing.
    • Broadband: 0.5Hz~100KHz ultra-wide frequency band detection of electrical parameters.
    • High precision: high-precision torque sensors and voltage/current acquisition modules, with core parameter measurement error within +0.5%.
    • High efficiency: complete all tests in one clamping, dual- and multiple-station custom, high efficiency.
    • High performance: closed-loop feedback regulation system for voltage regulation, steady voltage output.
    • Convenient maintenance: independently developed AC/DC power supplies, unified and efficient pre-sales/after-sales.
    • Multi-interface: USB/RS232/LAN, etc.; PLC simulation, TCP/IP network protocols, etc., for easy data exchange and instrument control.
    • New energy vehicle motors, robot motors, home appliance motors, industrial motors, and automation control motors.
