The AN51(F) series programmable DC power supply adopts high-frequency PWM control and phase-shifted full-bridge conversion, fast dynamic response, strong over-current capability, low output ripple, featuring compact, light, quiet, high efficiency, simple operation, and cost-effective. It can be used for manufacturing, testing, and maintenance of electronic equipment such as motors, power tools, automotive electronics, chips and electronic components, switching coils and DC switches, special equipment, etc., as well as by industrial and mining enterprises, colleges and universities, laboratories, and research institutes.
- Colorful LCD, digital keys, convenient, and easy to operate.
- 350mm deep, full range of standard chassis, suitable for system integration and portable applications.
- High-frequency PWM and full-bridge conversion technology, with high efficiency.
- Strong current/power overload capacity, up to 110%.
- Exceptional output stability.
- Voltage drop compensation terminal for large current output.
- Complete protection to ensure normal operation of the power supply unit and load security.
- Parallel output, convenient expansion.
- Powerful programming features to customize the output waveform.

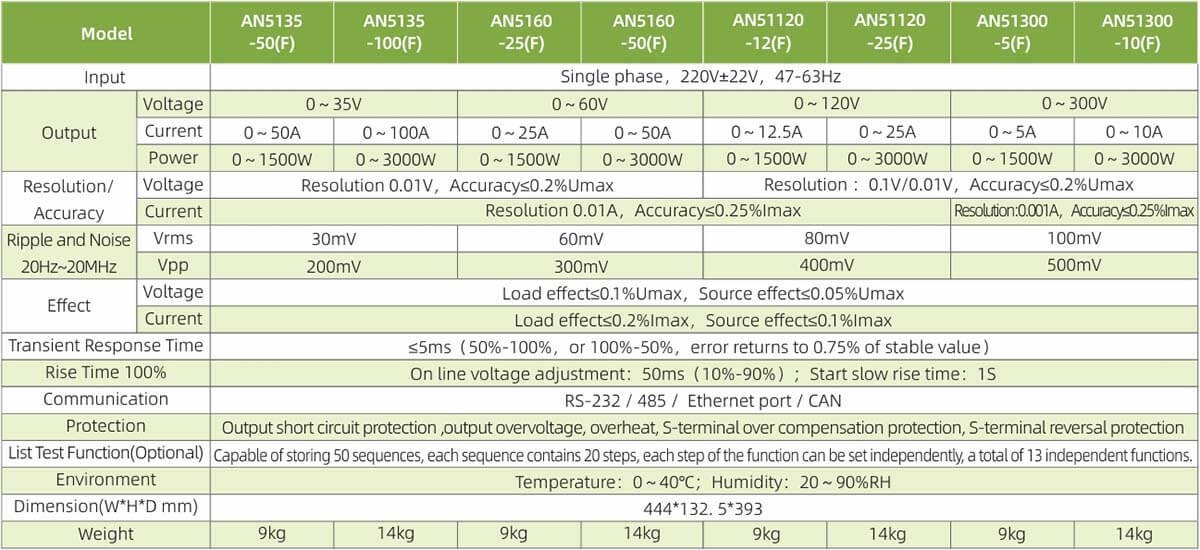

- AN5135-50(F): 35V/50A/1.5kW
- AN5135-100(F): 35V/100A/3kW
- AN5160-25(F): 60V/25A/1.5kW
- AN5160-50(F): 60V/50A/3kW
- AN51120-12(F): 120V/12.5A/1.5kW
- AN51120-25(F): 120V/25A/3kW
- AN51300-5(F): 300V/5A/1.5kW
- AN51300-10(F): 300V/10A/3kW
