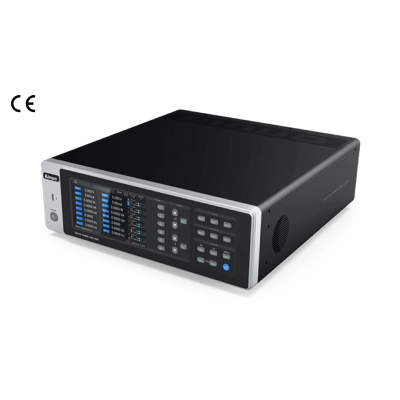

AN87660(F) Multi-Channel High Precision Power Analyzer

Model:

Application:

The AN87660(F) series is a high-precision multi-channel power analyzer offering 1 to 6 synchronized measurement channels. It delivers a basic accuracy of 0.05% of reading + 0.05% of range, with a measurement bandwidth covering DC and 0.5 Hz to 100 kHz, and a sampling rate of 200 kSps for precise signal capture. The instrument supports voltages up to 1000 V and currents up to 50 A (with mix-and-match ranging options).

It features a touchscreen display, waveform visualization, and customizable data logging with CSV export. Ideal for single/three-phase household appliances, photovoltaic energy storage, EV chargers, motors, and more, the AN87660 is a versatile solution for power, harmonic, and efficiency testing in R&D and production environments.

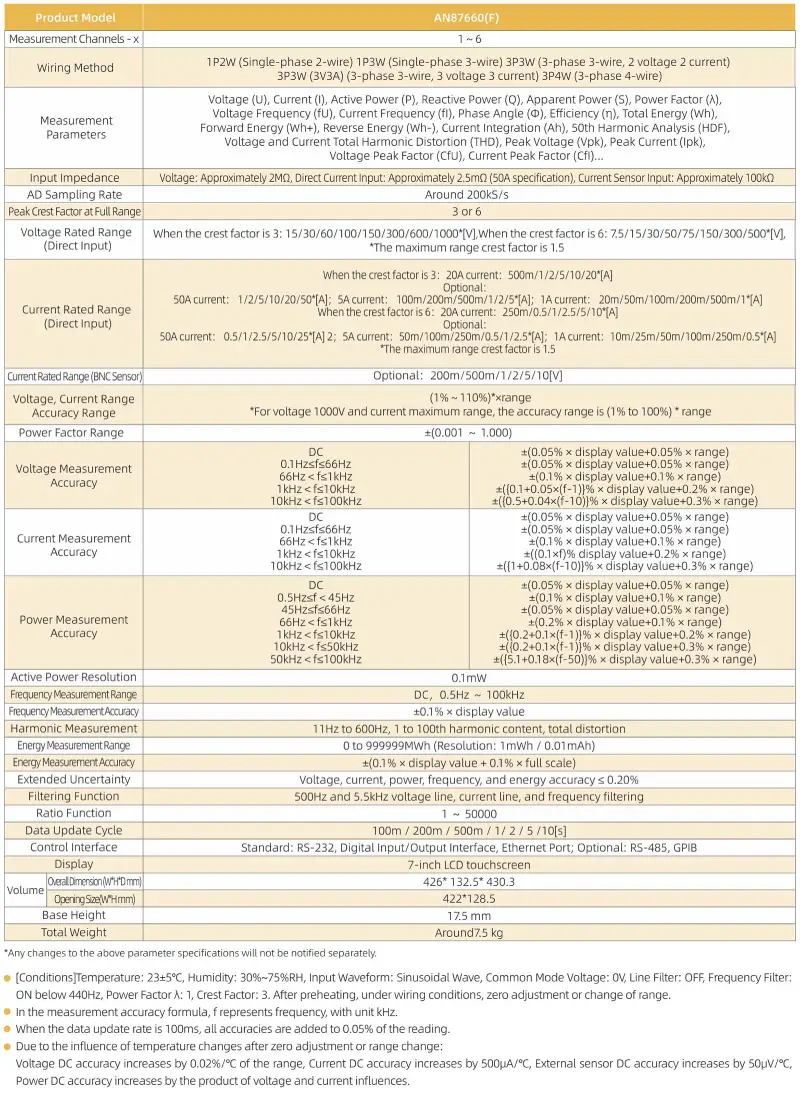

Six-channel synchronous power analysis
Basic Accuracy: 0.05% of reading + 0.05% of range
Measurement Bandwidth: DC, 0.5Hz-100kHz
Maximum voltage: Standard 1000 V, optional 1500 V;
Sampling Rate: 200kSps
Maximum Voltage: Standard 1000V (DC 1500V)
Maximum Current: 20A (standard), 50A/5A/1A (optional), supports mixed configurations; optional sensors available
LCD Display: Full touchscreen experience, customizable display interface, waveform display
Data Storage: Customizable storage items, export in CSV format
Perfect Size: Standard 3U height, meets system integration requirements.

Typical Applications

Analysis of standby power consumption and power for single-phase/three-phase household and commercial appliances
Analysis of power, efficiency, and harmonics for photovoltaic inverters
Measurement of electrical performance for electric vehicles and charging piles
Power and harmonics analysis for power electronics, transformers, and generators
Power and harmonics analysis for variable-frequency drives and variable-frequency motors
Analysis of power, harmonics, and surge current for switching power supplies
Power analysis for lighting systems and LED lighting.

Photovoltaic Inverter Power Measurement

Complies with "GB/T 37409-2019 Technical Specification for Testing of Photovoltaic Grid-Connected Inverters"
Voltage range: 0~1000V (DC 1500V)
Current range: 0~50A/current sensor
Capable of simultaneously measuring input and output (single-phase, three-phase) power and power factor
Automatic efficiency calculation
100th harmonic, distortion analysis
Bidirectional power measurement for buying and selling electricity

Electric Vehicle Electrical Performance Measurement

Multi-channel, capable of simultaneously detecting multiple parameters: Charging piles efficiency testing, battery charge and discharge performance, power conversion performance, motor performance, etc
AC/DC, maximum current 50A, expandable with larger current sensors
Basic accuracy: 0.05% of reading + 0.05% of range, minimum power resolution 0.1mW
Capable of measuring instantaneous effective value, average value, peak value, energy consumption, etc., of AC and DC signals.

Frequency Converters Power Measurement

Complies with GB12668 standard.
Power bandwidth: DC, 0.5Hz~100kHz
Current range: 0~50A/current sensor
Capable of simultaneously measuring input and output power
100th harmonic, distortion analysis

Power Supplies, UPS Power Measurement

Current range: 0~1A/5A/20A/50A
Power bandwidth: DC, 0.5Hz-100kHz
Capable of simultaneously measuring input and output (single-phase, three-phase) power and monitoring battery charge and discharge
Automatic efficiency calculation

Household Appliance Performance Evaluation, Standby Power Consumption Measurement

Complies with IEC 62301-2011 standard
Current range: 0~1A/5A/20A/50A, capable of measuring rated power and standby power
Minimum power resolution: 0.1mW
100th harmonic, distortion analysis
