AN50(F) small power voltage-stabilized DC power supply adopts high-frequency PWM control and full-bridge converter technology to feature fast dynamic response, strong overcurrent capability, and low output ripple. It has the advantages of small size, low weight, low noise, high efficiency, and simple operation, making it a cost-effective power supply. It can be used for the manufacturing, testing, and maintenance of special electronic equipment such as motors, power tools, automotive electronics, braking-closing coils, and DC switches, while being used in industrial and mining enterprises, college laboratories, and research institutes, among others.
Customization & Expansion

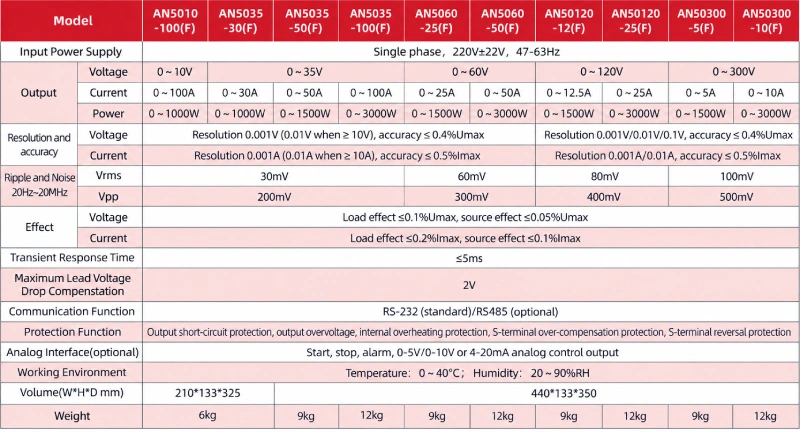

- AN5010-100(F): 10V/100A/1000W
- AN5035-30(F): 35V/30A/1000W
- AN5035-50(F): 35V/50A/1500W
- AN5035-100(F): 35V/100A/3000W
- AN5060-25(F): 60V/25A/1500W
- AN5060-50(F): 60V/50A/3000w
- AN50120-12(F): 120V/12.5A/1500W
- AN50120-25(F): 120V/25A/3000w
- AN50300-5(F): 300V/5A/1500W
- AN50300-10(F): 300V/10A/3000W

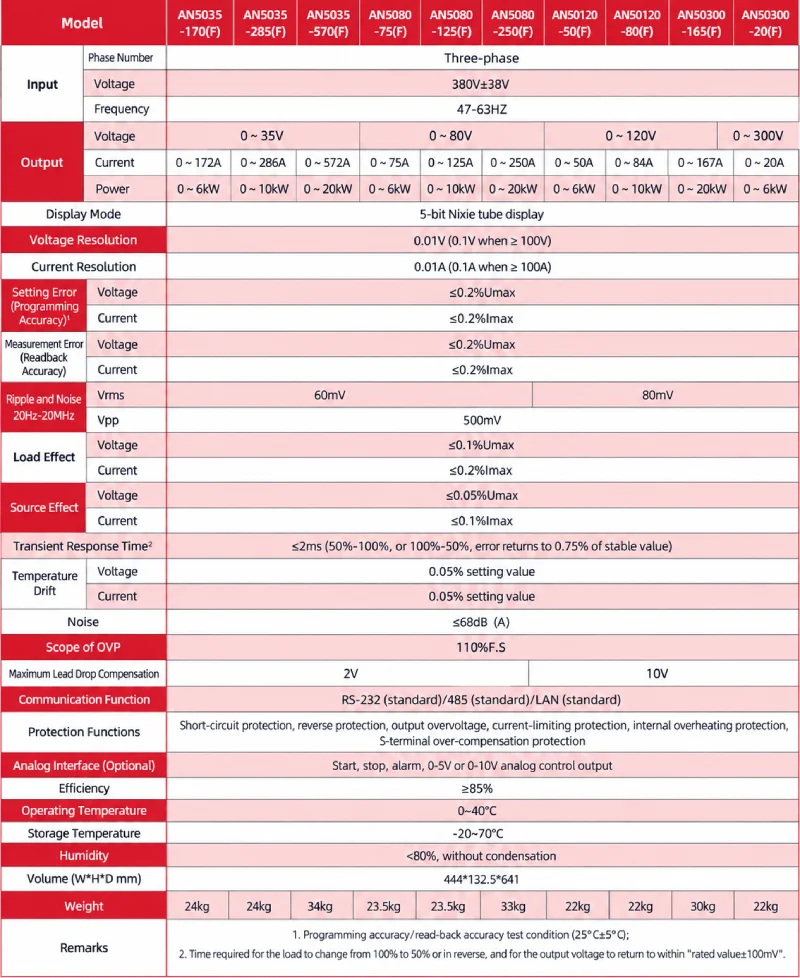

- AN5035-170(F): 35V/172A/6000w
- AN5035-285(F): 35V/286A/10000w
- AN5035-570(F): 35V/572A/20000W
- AN5080-75(F): 80V/75A/6000w
- AN5080-125(F): 80V/125/10000W
- AN5080-250(F): 80V/250A/20000w
- AN50120-50(F): 120V/50A/6000w
- AN50120-80(F): 120V/84A/10000w
- AN50120-165(F): 120V/167A/20000w
- AN50300-20(F): 300V/20A/6000w
- AN50300-30(F): 300V/34A/10000w
- AN50300-65(F): 300V/67A/20000w
- AN50600-10(F): 600V/10A/6000w
- AN50600-17(F): 600V/17A/10000w
- AN50600-30(F): 600V/34A/20000W
- AN50700-9(F): 700V/9A/6000w
- AN50700-14(F): 700V/14.5A/10000W
- AN50700-29(F): 700V/29A/20000w
- AN501200-17(F): 1200V/17A/20000W
- AN501400-14(F): 1400V/14A/20000w
