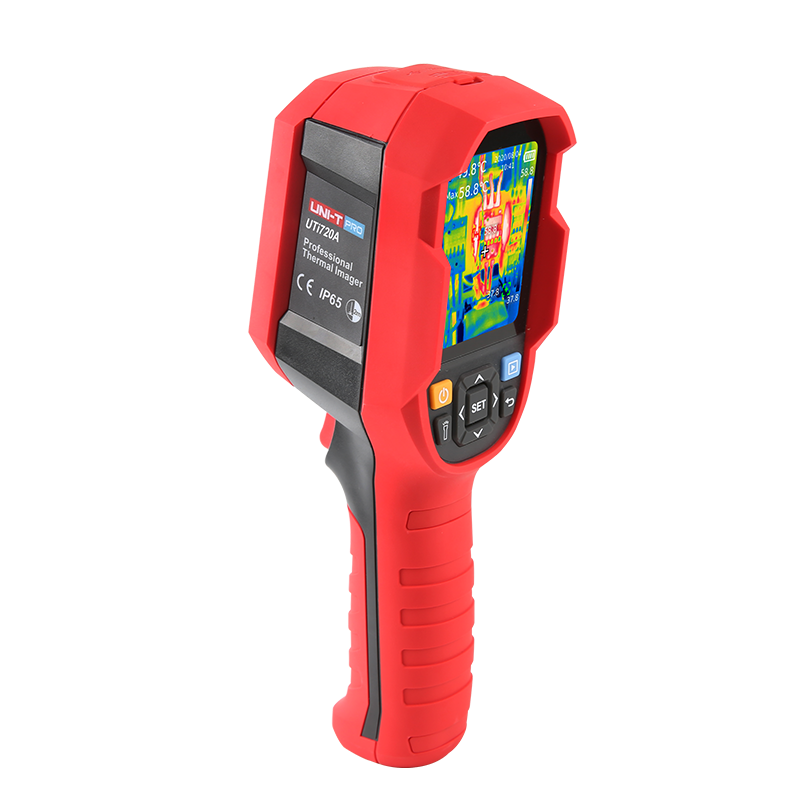

UTi720A Heavy Duty Thermal Camera

UTi720A is a featured thermal imager with a quality build. Cooperate with 2.8″ large display screen, UTi720A’s high-definition IR resolution assists users to notice thermal abnormalities easily. Furthermore, it is also equipped with high brightness LED light. This rugged product has IP65 certificate and withstand 2 meter drop. It can be equipped with macro lens UT-Z002 (Optional), the recommended distance is 4 cm.

REQUEST A QUOTE DOWNLOAD CATLOGUE

Features

Durable and user-friendly
2.8” TFT display screen (320×240 Pixels)
IR resolution: 256×192
Temperature measurement range: -20℃ to 400℃ / -4℉ to 1022 ℉
Auto alarm for high/low temperature
Auto tracking for hot spot/cold spot
On screen analyzer: 3 Points
Image capture
Image modess: Thermal
Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
LED flashlight
PC software analysis and real-time image projection)
Rechargeable Li-ion battery
1/4”Tripod Mounting Hole
IP65
2m drop proof

Specifications

Technical Data
Display	2.8” TFT (320×240)
IR resolution(Pixels)	256×192
Spectral range	8~14µm
Pixel size	12µm
Frame rate	≤25Hz
Thermal sensitivity(NETD)	≤50mK
Focus	Focus Free
Field of view(FOV)	56°(H) × 42.2°(V)
Temperature measurement range	-20℃~400℃
Accuracy	±2℃ or ±2% whichever is greater

Functions

Color palettes	White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC
Image modes	Thermal
On-screen analyzer	3 Points
Hi/Lo temperature alarm	LCD animation & LED flashlight
Hi/Lo temperature tracking	✔
LED lighting	✔
Analysis software	PC

General Characteristics

Battery	5000mAh rechargeable Li-ion battery
Operating time	≥7 hours
USB	Type-C
Image storage format	BMP
Protection	IP65 & 2m drop proof
Certificates	CE, FCC, RoHS
Languages	EN, FR, DE, IT, ES, SV
Weight	490g
Dimension	236mm×75.5mm×86mm

Packing Details

Standard accessories	Type-C USB cable, English Manual, Documents Download, Operation Guide
Standard individual packing	Gift box
Standard Qty per carton	10pcs
Standard carton size	500mm×315mm×295mm
Standard carton G.W.	10.1kg

UTi260B-power-distribution-carbinet-inspection

UTi720A Data Sheet

1 file(s) 1 MB

UTi720A User Manual

1 file(s) 5 MB
