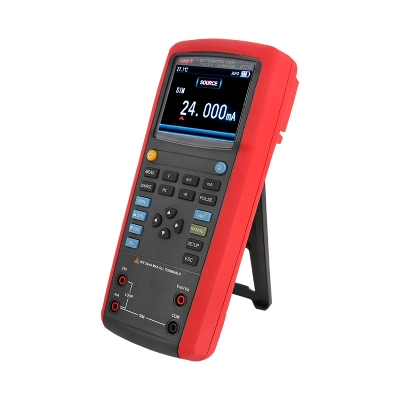

UT715 Multifunction Loop Process Calibrator

The UT715 multifunction loop process calibrator, it measures and sources loop current and voltage. It is designed with 0.02% accuracy, adjustable backlight and auto power off. It is a powerful tool for calibration, repair, and maintenance of mA loops.

REQUEST A QUOTE     DOWNLOAD CATLOUGE

Compare
Categories: , , ,
Description

Features of UT715 Multifunction Loop Process Calibrator

Certifications: CE, UKCA

  • Step/ramp functions
  • Source and measure accuracy up to 0.02%
  • Rechargeable battery
  • Contrast adjustment
  • Auto power off (Time adjustable)
  • Stores and recalls setups
  • USB communication
  • Provides 24V loop power to transmitter while conducting mA current measurement at the same time

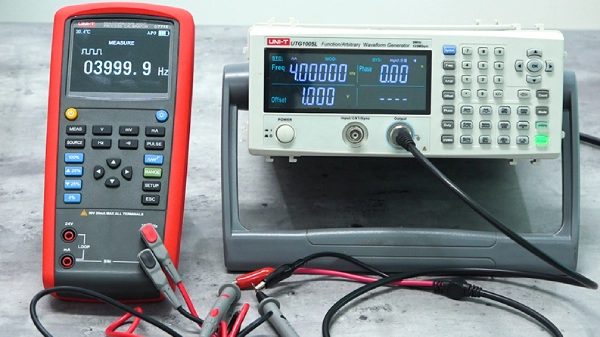

UT715-frequency-measurement

    UT715 | Datasheet

    UT715 | User Manual
