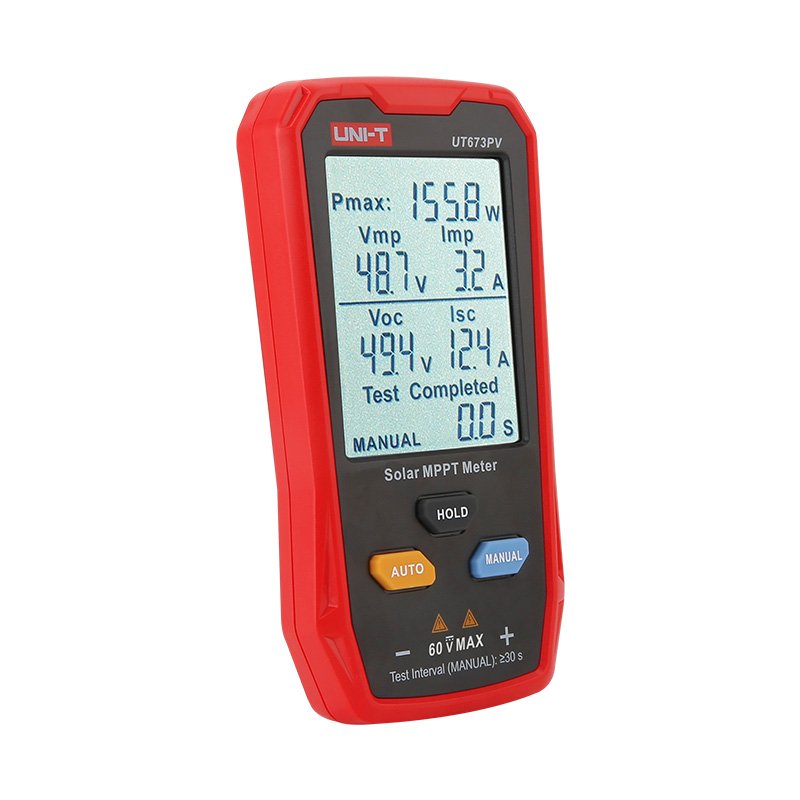

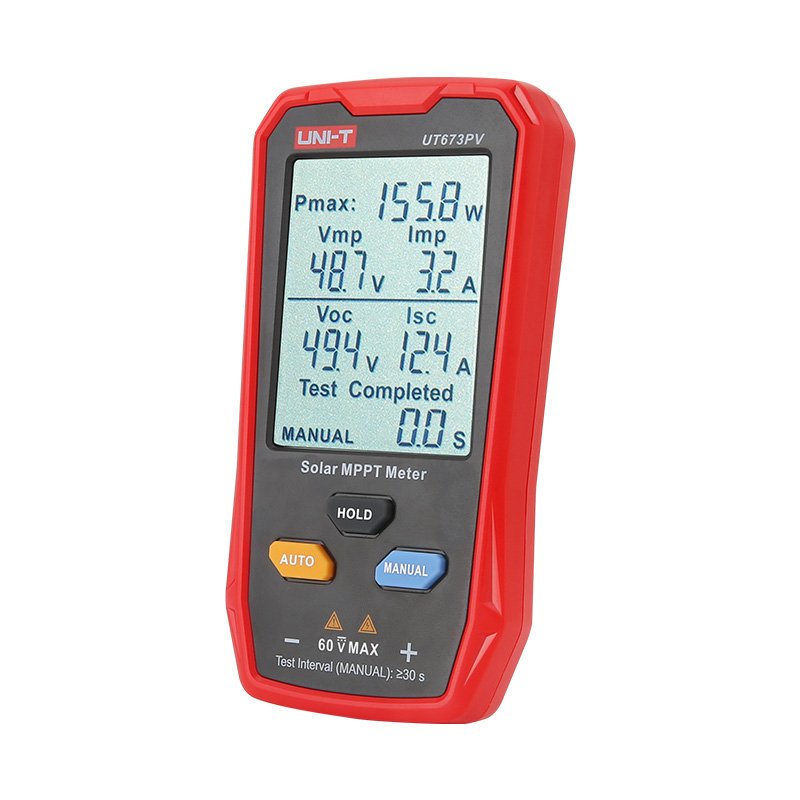

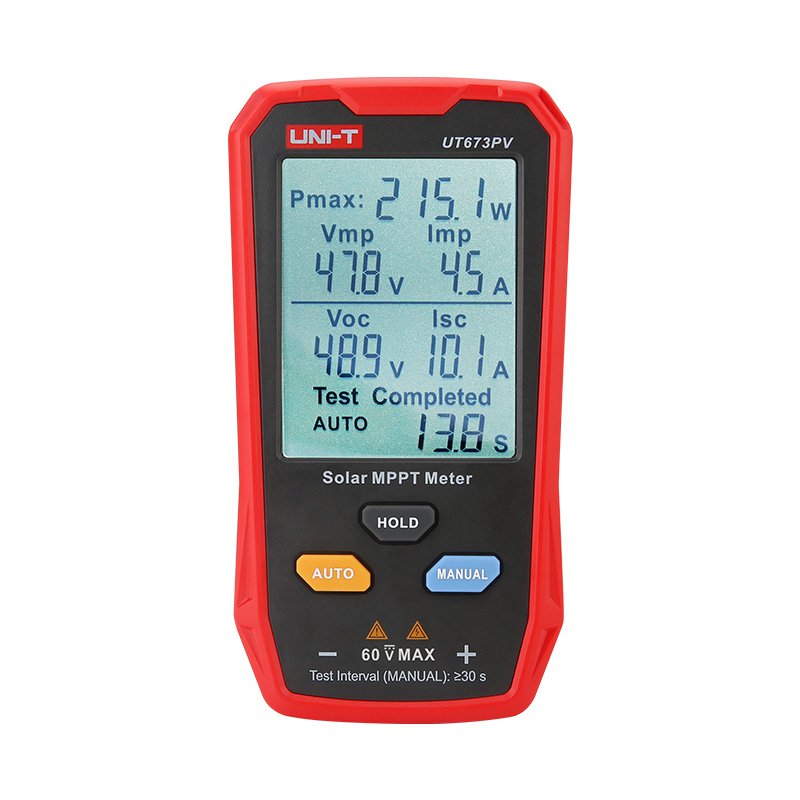

UT673PV Solar MPPT Meter

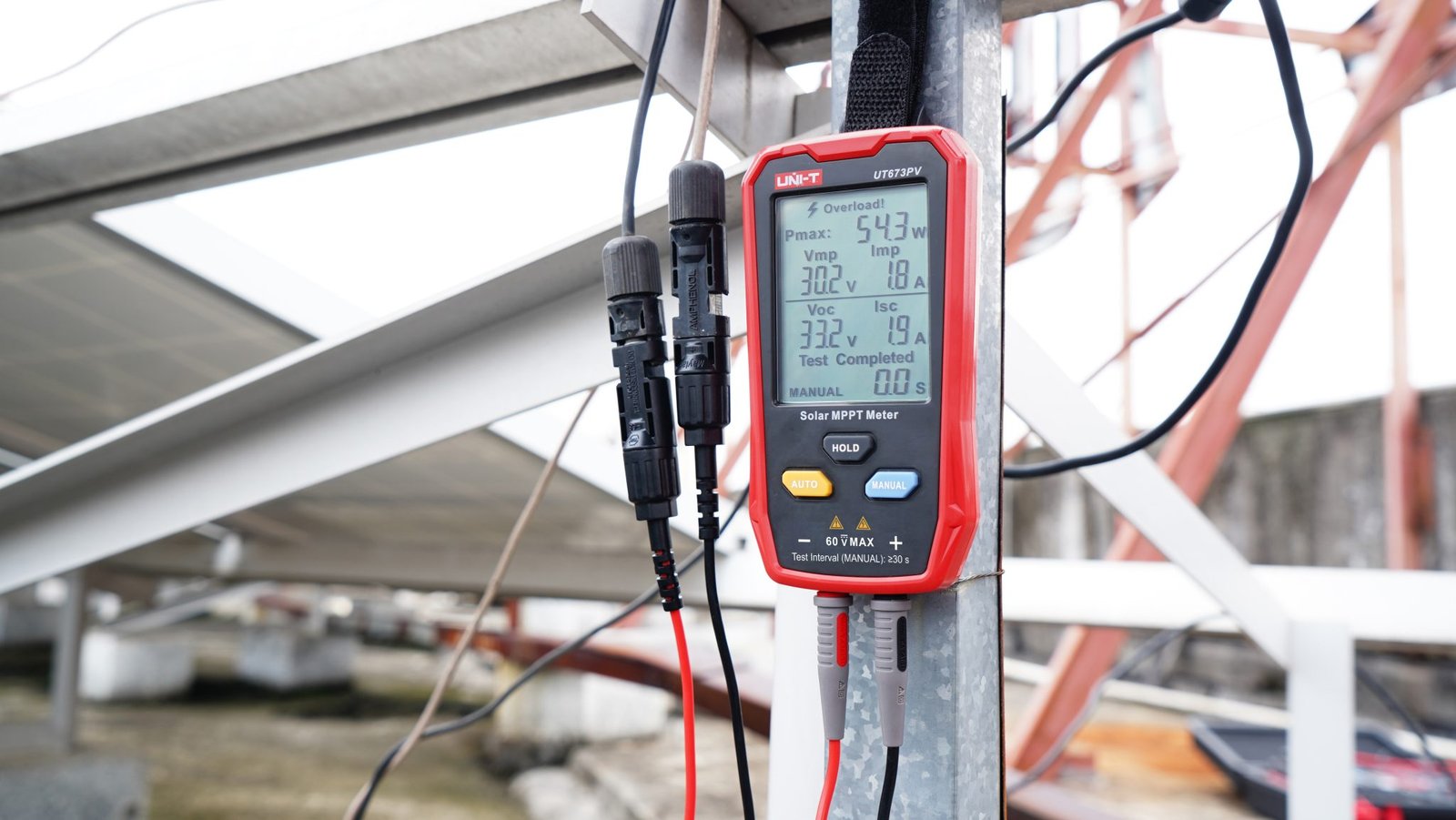

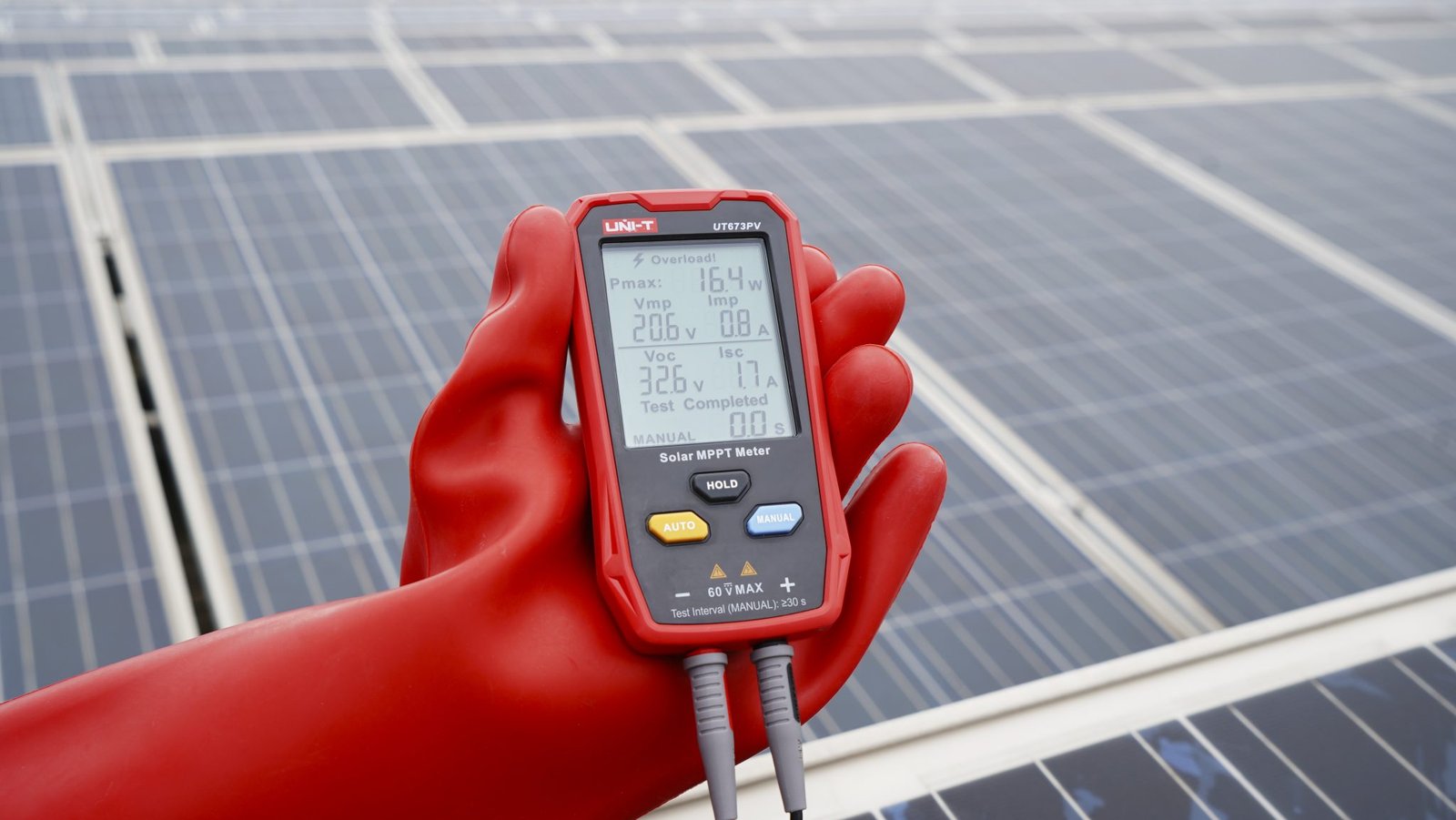

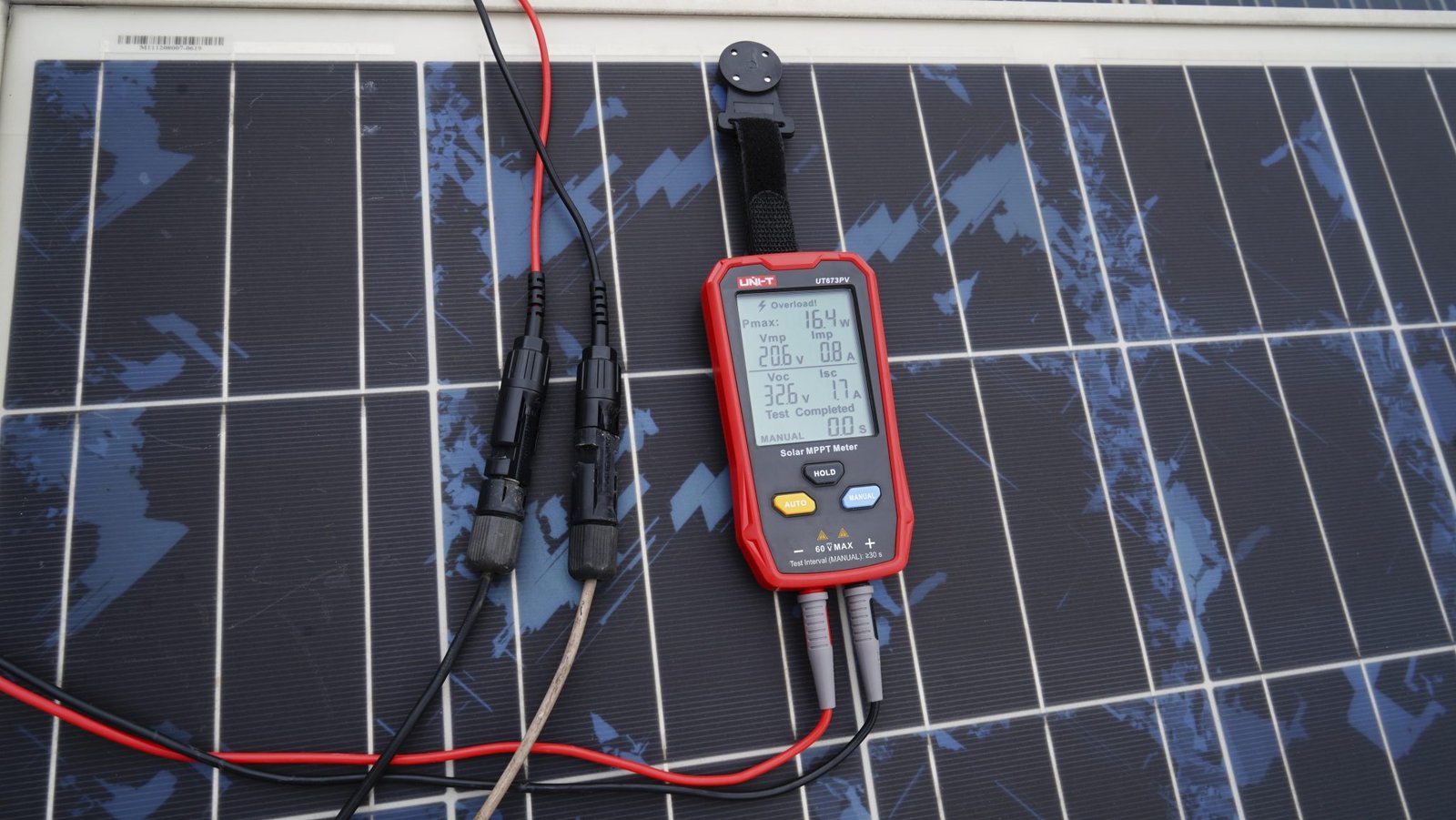

UT673PV solar MPPT meter can effectively identify any abnormalities in solar panels by testing their maximum power, peak power voltage, peak power current, open circuit voltage, and short circuit current. Featuring a spacious screen and automatic measurement capabilities, this device conveniently displays all measurement results simultaneously. Its portable design enables easy carrying, greatly enhancing the operational and maintenance efficiency for photovoltaic manufacturers, installers, and end users.

REQUEST A QUOTE DOWNLOAD CATLOUGE

Features of UT673PV Solar MPPT Meterr

Maximum power test (Pmax) 5～800W
Peak power voltage (Vmp) 12～60V
Peak power current (Imp) 0～35A
Open circuit voltage (Voc) 12～60V
Short circuit current (Isc) 0～35A

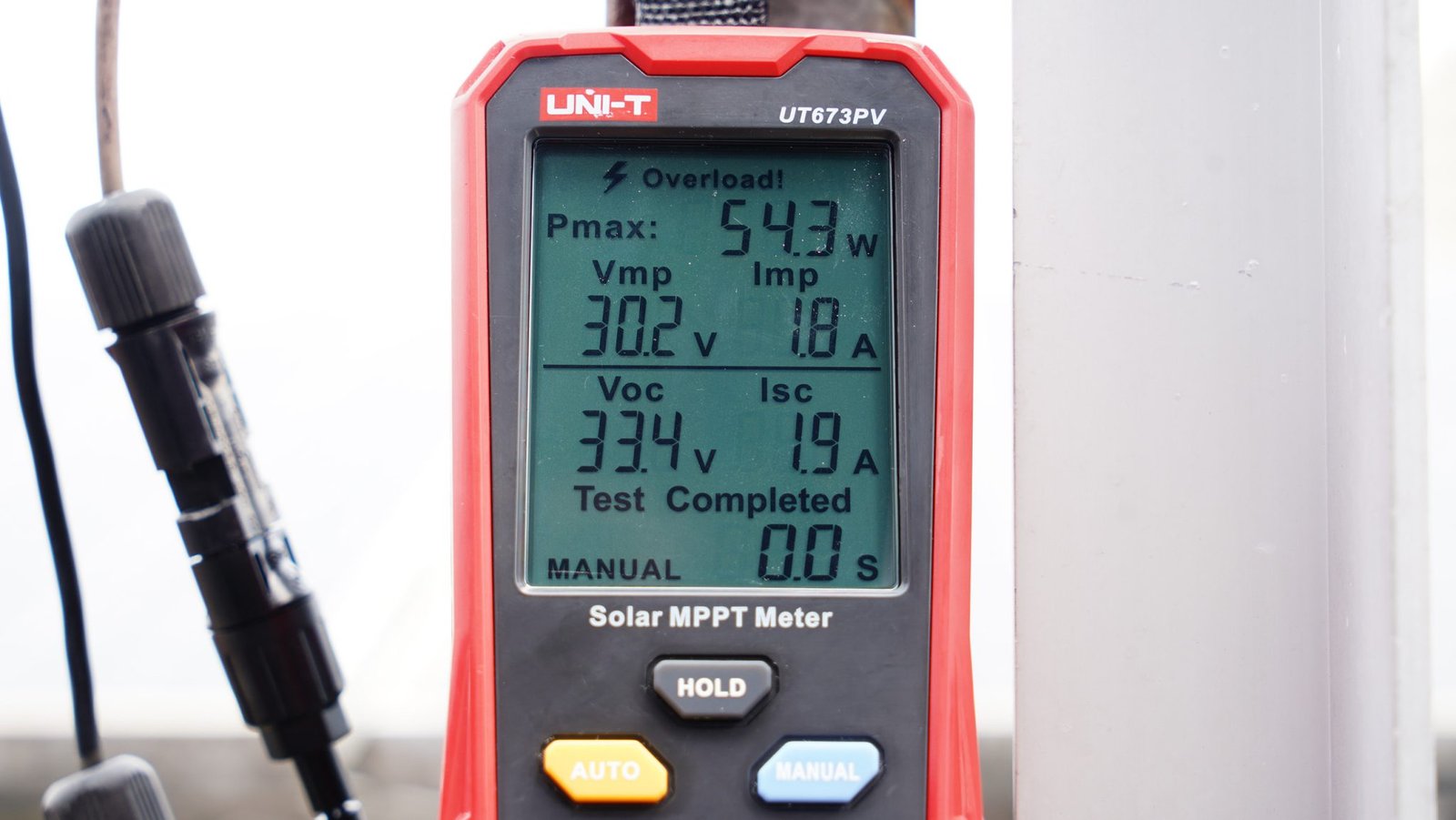

Large screen and multiple result display
No batteries needed, powered by the solar panel

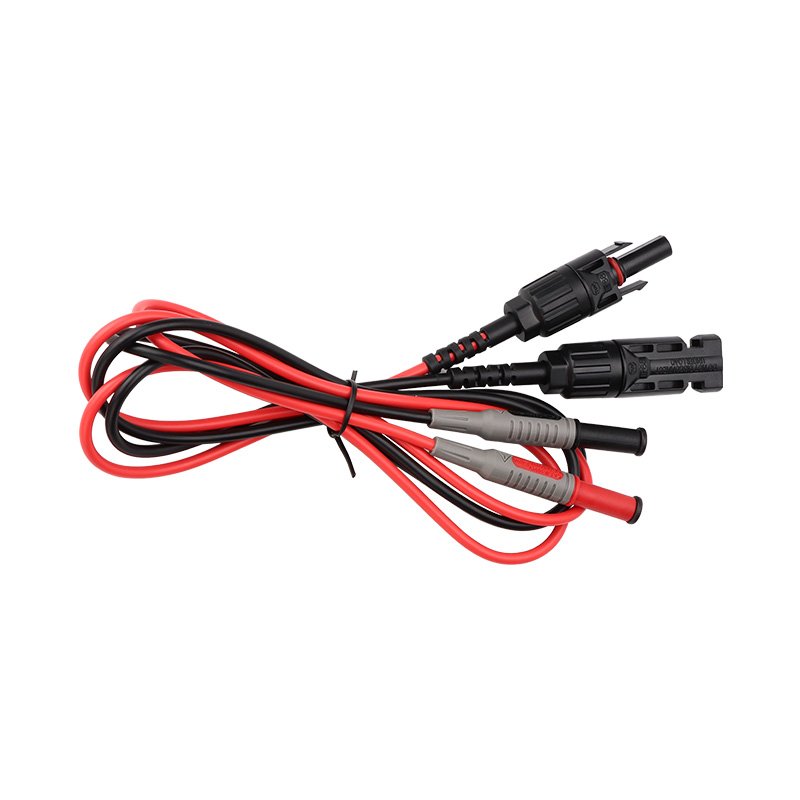

Equipped with MC4 test lead
Portable and convenient

Technical Specifications
Max power measurement	5～800W	±(1.0%＋10)
Max power current(DC)	0～35A	±(1.5%＋5)
Max power voltage(DC)	12～60V	±(1.5%＋5)
Open circuit current(DC)	12～60V	±(1.0%+5)
Short circuit current(DC)	0～35A	±(1.5%＋5)

Features:
Display	Large LCD (52 * 66mm)
Reverse polarity connect Protection	✔
Over voltage protection	✔
Over current protection	✔
Over temperature protection	✔
Over power protection	✔
Manual/Auto MPPT test	✔
Data hold	✔
Power supply	No battery needed, powered by solar panel
Ovecategory	CAT 0 60V
Certificate	CE, cETLus, RoHS

UT673PV User Manual

1 file(s) 772 KB

UT673PV Series DataSheet

1 file(s) 1.72 MB
