UT273+ Clamp Earth Resistance Tester
UT273+ Clamp Earth Resistance Tester
Back to products
UT278B & C & D Series Ground pile clamp earth resistance tester
UT278B & C & D Series Ground pile clamp earth resistance tester

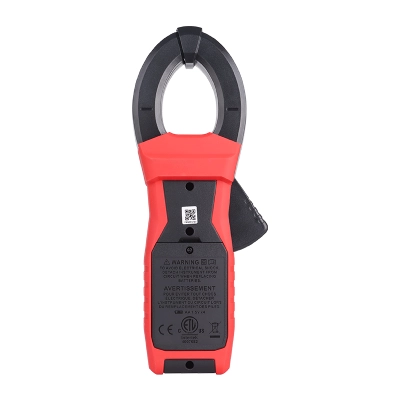

UT276B & UT276C Earth Clamp Meter

The UT27X Series Earth Clamp Meter is a device for measuring ground resistance, featuring easy operation, portability, high accuracy, and strong anti-interference capability; it is widely used in telecommunications, power, equipment rooms, and other fields.

REQUEST A QUOTE     DOWNLOAD CATLOUGE

Compare
Categories: , , ,
Description

Features of UT276B & UT276C Earth Clamp Meter

Certifications:  CE/ETL/RoHS

  • Resistance measurement：
    • UT276B： 0.010~ 1200Ω ；
    • UT276C： 0.010~1800Ω
  • AC Current measurement：
    • UT276B： 0.200mA~20.0A
    • UT276C： 0.200mA~40.0A
  • Earth resistance accuracy：±（1%＋0.01Ω）
  • Max measurable diameter：φ 44 mm (busbar or cable）
  • Data storage: 500 sets
  • Bluetooth data communication
  • 4-digit LCD
  • Self-calibration when power is on
  • IEC 61010-1; IEC61010-2-032; IEC61326
  • Certificates: CE/ETL/RoHS

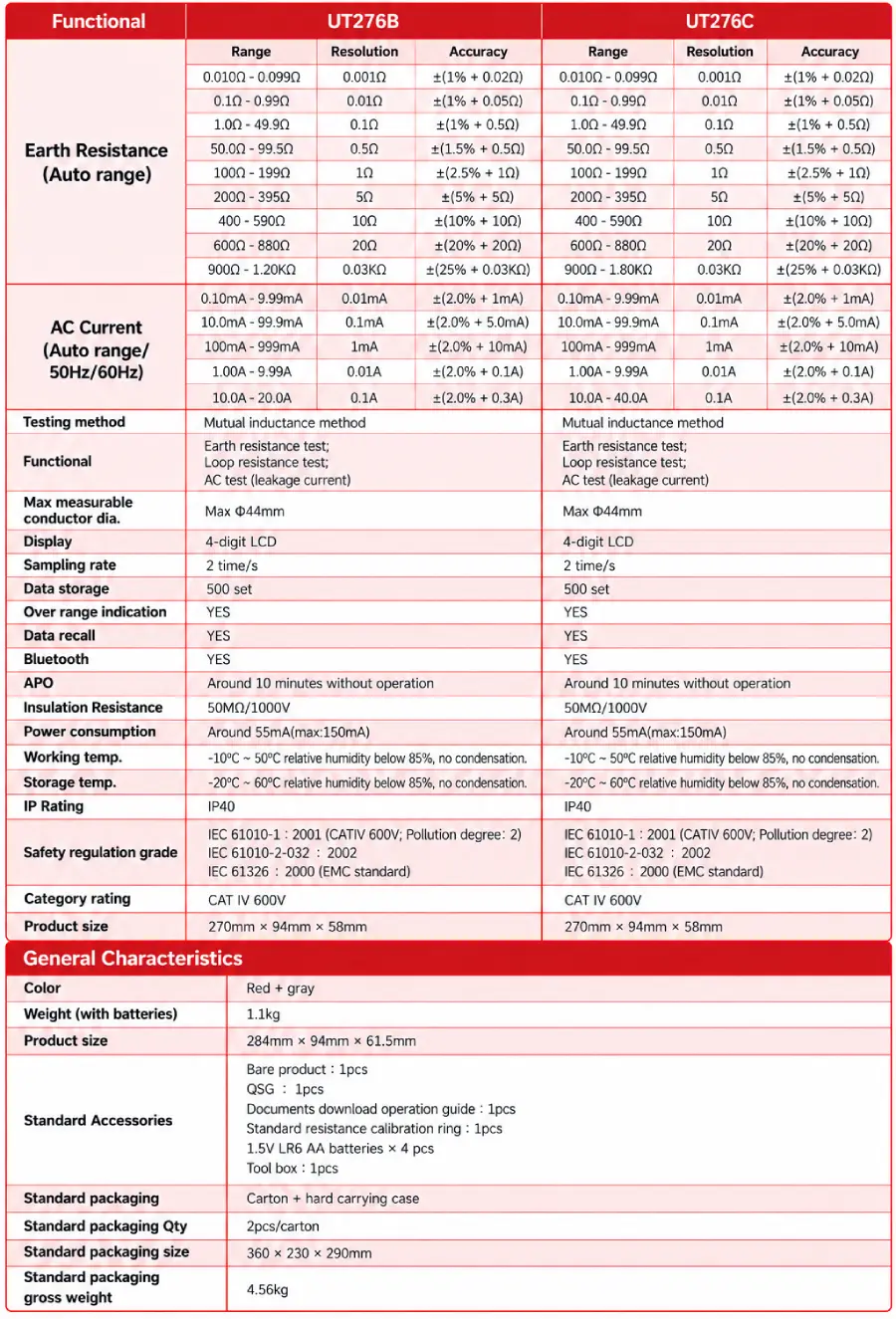

UT27X Series DataSheet
