Ainuo AN96XXB(F) Series electrical safety tester has a multi-function combination including AC withstand voltage, DC withstand voltage, insulation resistance, and AC grounding, as well as auxiliary functions such as arc detection, open and short circuit detection, and low-pass filtering, and has a variety of interfaces including RS232, RS485, PLC, LAN(optional), and USB(optional).
This series of product features compact, light, rich interfaces, and is suitable for desktop testing, system integration, and other operating conditions.
- Functions: Four-in-one, ACWIDCW/IR/GB
- High precision: 1% basic accuracy for the safety tests
- High efficiency: fast test, convenient
- Wide range: ACW 5kV, DCW 6kV, IR 3kV/150GΩ

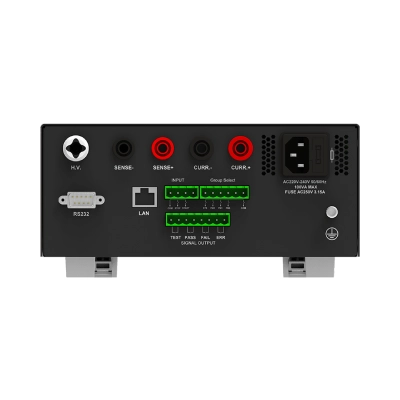

- Rich interfaces: RS232/I0/INTERLOCK/ALARM/USB/LAN
- Auxiliary functions: Slow rise/hold/slow down, comprehension, ARC, OSC, WAIT
Model Function | AN9637B(F) ACW/DCW/IR/GB | AN9635B(F) ACW/DCW/IR | AN9633B(F) ACW/DCW/IR |
| AC withstand Voltage (ACW) | 5kV/40mA | 5kV/20mA | |
| DC withstand Voltage (DCW) | 6kV/10mA | ||
| Insulation Resistance (IR) | 3kV/50GΩ | ||
| Ground Bond Resistance (GB) | 40Aac/600mΩ | None | |
| Operation Interface | 5-inch color LCD touch screen, standard RS2320 interface, optional RS485USBLANALARM interface | ||
| Dimensions (W*H*D mm) | 250*118*440 | 213*88*360 | |
- Safety of household and similar electrical appliances (IEC60335-1).
- Audio/video, information, and communication technology equipment (IEC62368-1).
- Safety requirements for electrical equipment for measurement, control, and laboratory use(IEC61010-1).
- Safety test for switching power supply, transformer, low-voltage electrical appliances, electronic components, and other electronic products.
