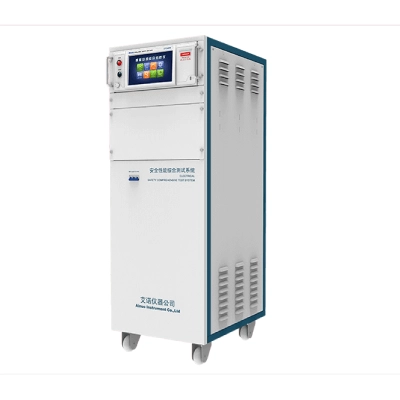

Ainuo Instrument Co., Ltd. has been dedicated to the research and development of electrical safety analyzers for over 30 years and has participated in drafting 16 national standards and industry calibration regulations for safety analyzers. The AN 1640H-M(F) series Medical Electrical Safety Analyzer features comprehensive functions, legal compliance, easy operation, and informatization, making it suitable for testing medical electrical equipment safety standards.
- Six-in-one: ACW/DCW/IR/GB/LC/PW;
- Legal: Meet the safety test requirements of IEC60601;
- Convenience: automatic programming, multi-network and multi-channel switching, automatic test of one-time wiring;
- Informatization: PC/SRS software, local data management, MES database connection.
|Specially designed for the standard test of safety of medical electrical equipment, simple, one-click completion of all tests after one-time wiring.
Multiple MDs: Standard medical electrical equipment (IEC60601-1:2012) MD network, up to 8 leakage MDs options, meeting various industry test standard requirements;
Multi-channel switching: Standard 8-channel ACW/DCW/IR switching. Set HV/Off for the network power supply and patient connection. Set On/Off for PE, case, patient connection, signal I/O, display screen, keyboard, etc. Standard 1-channel GB test.
Leakage contact current: meets the requirements for the test of ground leakage current, contact current, patient leakage current, and patient auxiliary current.

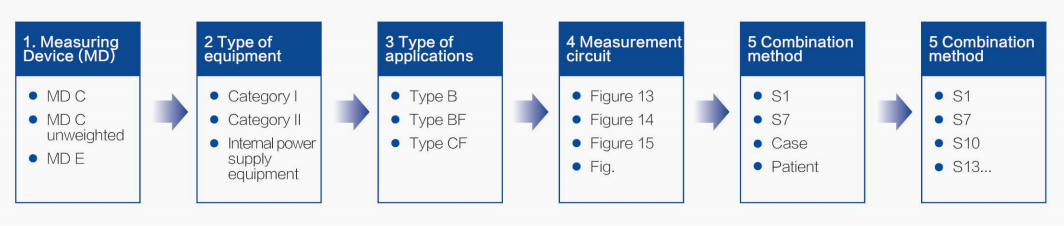

Two shortcuts: The setting for the LC test is complex. This analyzer offers manual/auto settings modes, providing a unique and quick operation to simplify complexity and reduce user difficulty.
6-step easy operation: 10" touchscreen, manual/auto LC test, illustrated with text.

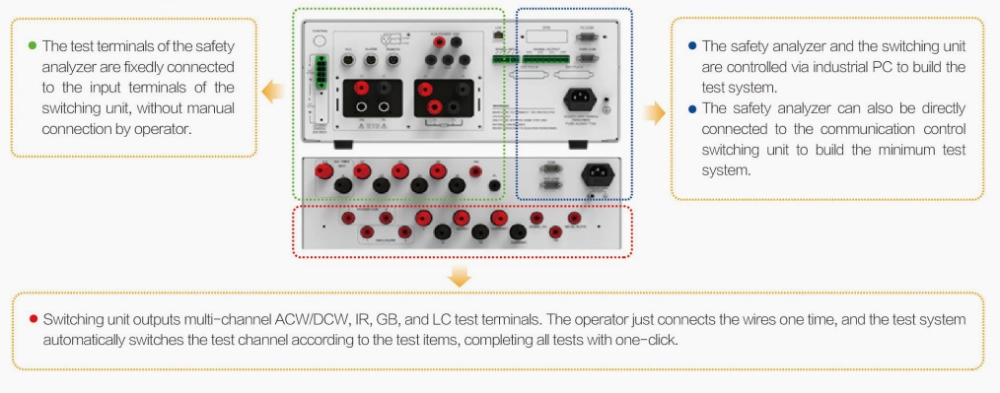

Combination of the safety analyzer and the multi-channel switching unit, strong scalability, one-click completion of all tests after one-time wiring.
- Medical electrical equipment(IEC60601-1:2012)
- Safety requirements for electrical equipment for measurement, control, and laboratory use(IEC61010-1)
