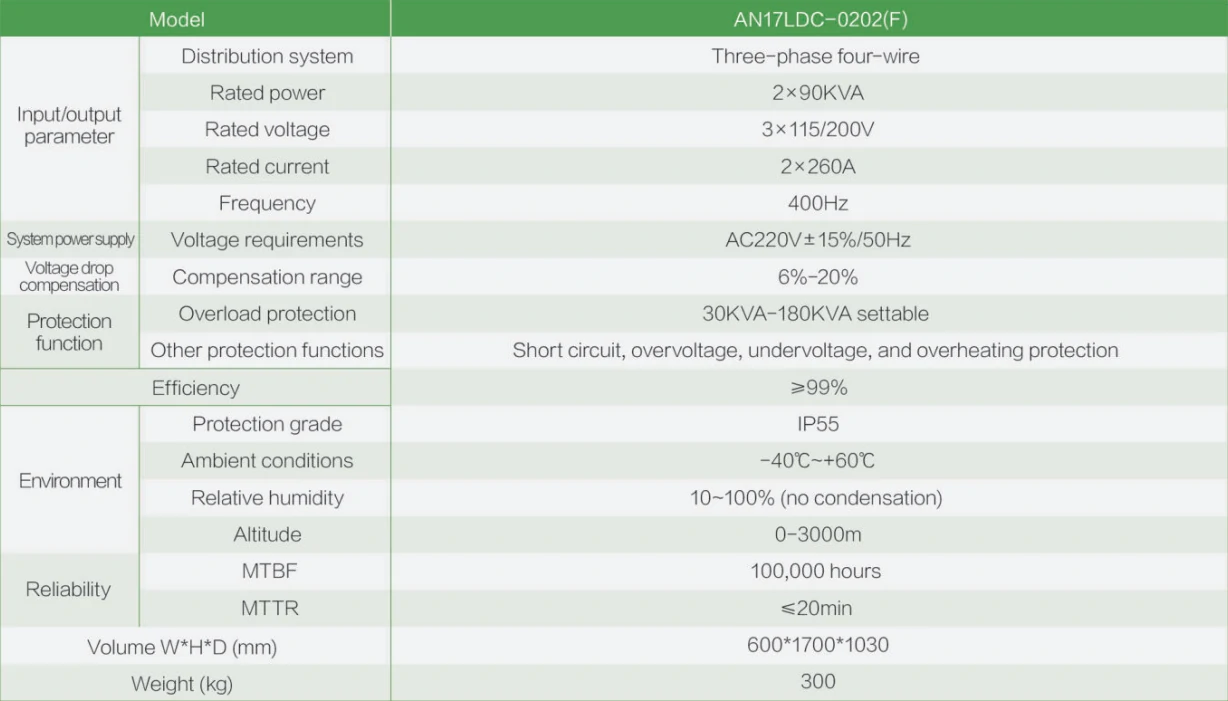

AN17LDC(F) Voltage Drop Compensator is designed for centralized power supply systems to compensate for cable voltage drops between power units and aircraft plugs, thereby enhancing output power factor. This device continuously monitors current, automatically serially connects capacitance and inductance to the output circuit, and offsets the inductive reactance of the output lines to minimize voltage drops caused by cables. It is primarily applied in scenarios with long output cables, in conjunction with power units and paralleling cabinets, to form a paralleling system.
Ainuo 400Hz Voltage Drop Compensator AN17LDC(F) is primarily applied in scenarios with long output cables, in conjunction with power units and paralleling cabinets, to form a paralleling system.
