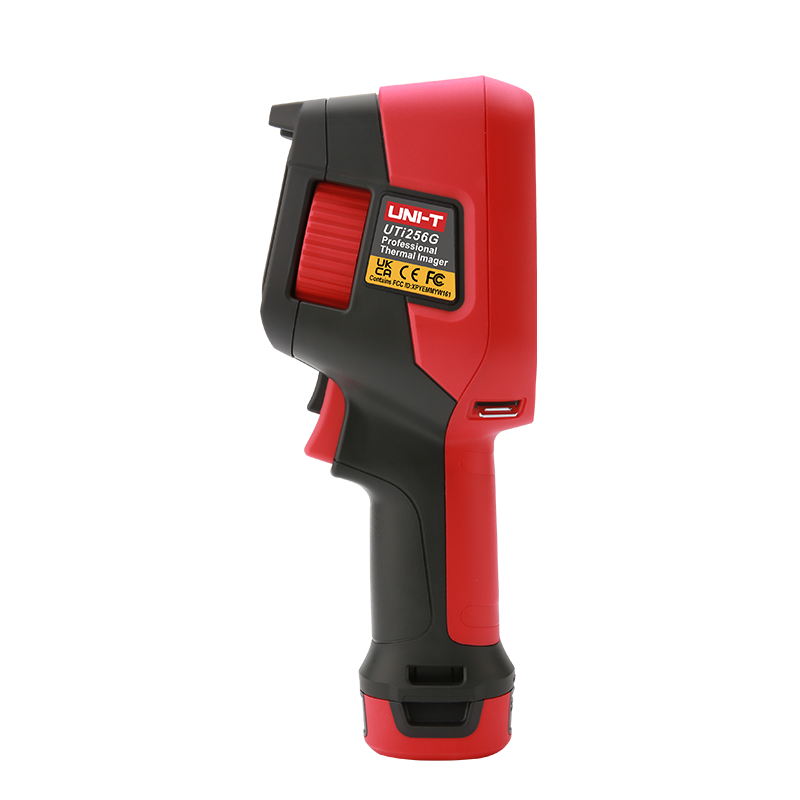

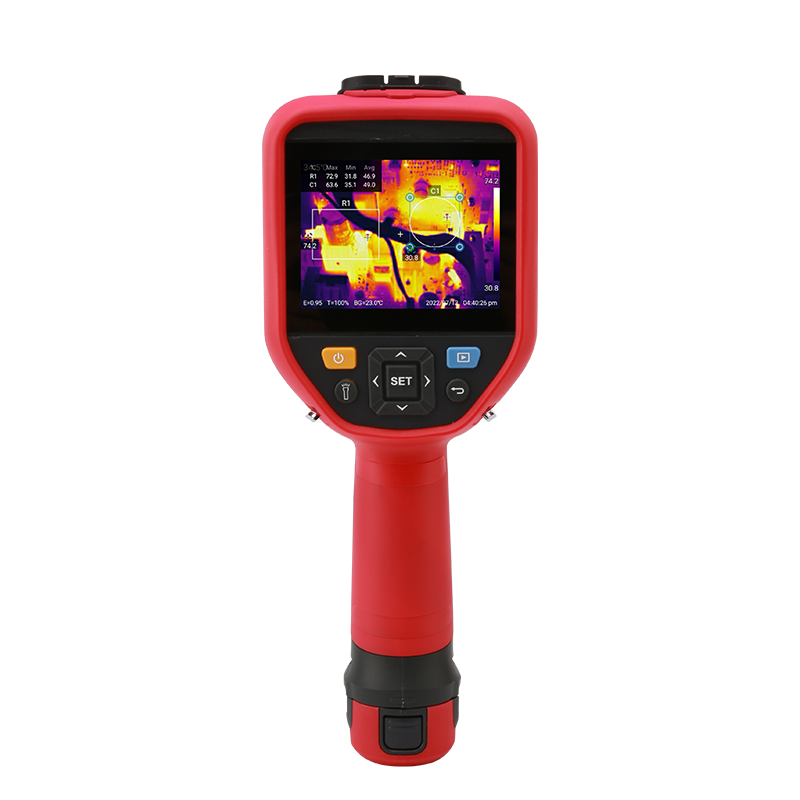

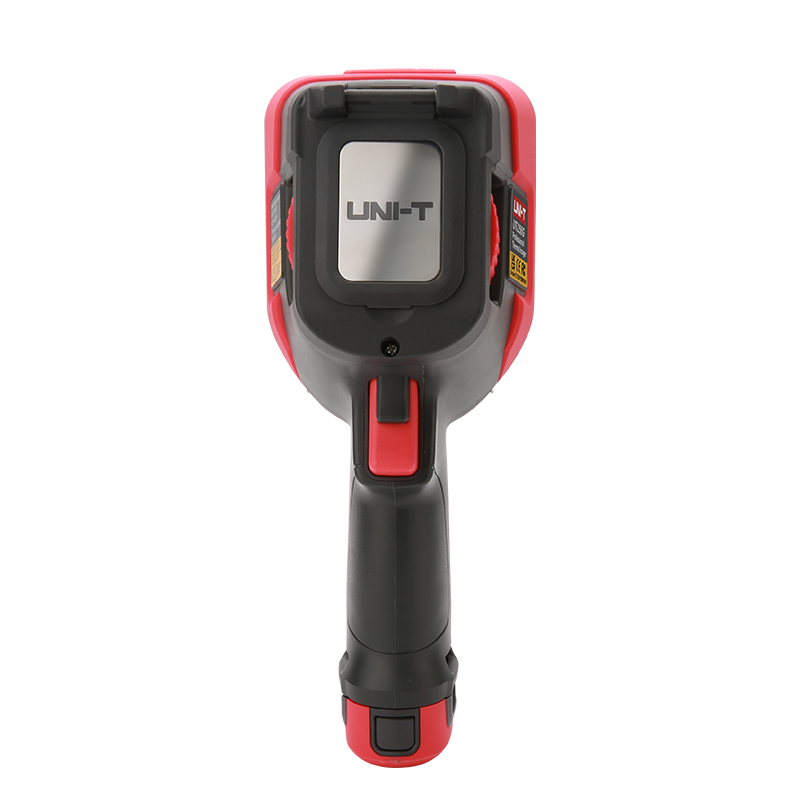

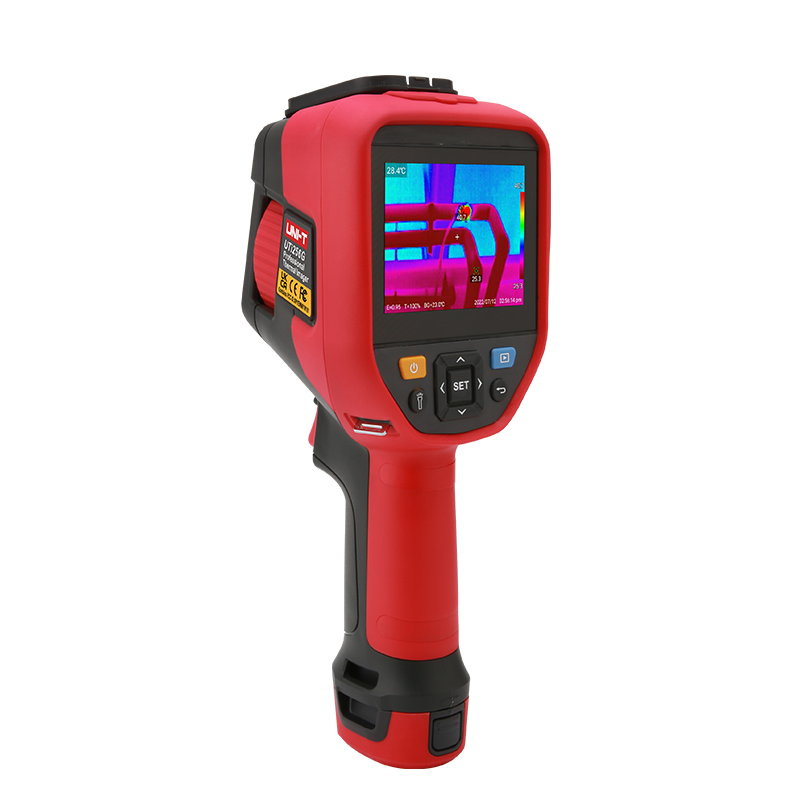

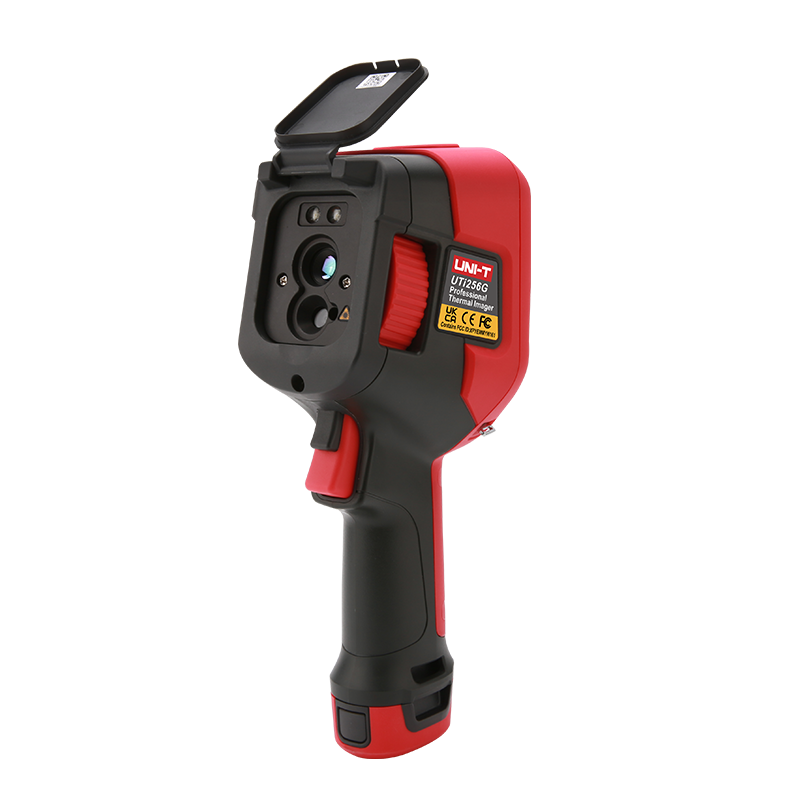

UTi256G Professional Enhanced Thermal Camera

UTi256G is a professional enhanced thermal camera that specially designed for industrial use with high IR resolution 256×192 and wide temperature range:-20℃~550℃. The professional manual focus lens can flexibly adjust the focal length according to different objective’s distance and provide high quality image. The 3.5’’ large IPS touch screen take more efficient and convenient operation experience for users. UTi256G also support various outstanding functions: such as Wi-Fi, voice recording, laser pointer, on screen analyzer，etc. They are perfect troubleshooting tools for many industrial applications.

REQUEST A QUOTE DOWNLOAD CATLOGUE

Features

3.5″ IPS touchscreen (640×480)
IR resolution:256×192
Temperature measurement range: -20℃ to 550℃
On screen analyzer :5 Points/5 Lines/5 Rectangles/5 Circles
Digital camera resolution: 5MP
Focus: Manual focus
Digital zoom: 2x, 4x
Wi-Fi and Bluetooth connection through Mobile App
PC software: analysis and real-time image projection
Video recording
Voice recording
Image modes: Thermal,Visual image,Fusion,PIP
Color palettes: 7(White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
Isotherm: 5(Auto/Manual/Above/Below/Section)
5200mAh replaceable battery pack (Type-C rechargeable)
IP54
2m drop proof

Specifications

Display	3.5″ IPS Touch (640×480)
IR resolution(Pixels)	256×192
Spectral range	7.5~14µm
Pixel size	17µm
Frame rate	≤30Hz
Thermal sensitivity(NETD)	≤40mK
Focus	Manual Focus
Field of view(FOV)	28°(H) × 20°(V)
Temperature measurement range	-20℃~550℃
Accuracy	±2℃ or ±2% whichever is greater

Functions

Color palettes	White Hot, Black Hot, Red Hot, Ironbow, Rainbow HC, Rainbow, Lava
Image modes	Thermal, Visual image, Fusion, PIP
On screen analyzer	3 Points/3 Lines/3 Rectangles/3 Circles
Isotherm	Auto/Manual/Above/Below/Section
Hi/Lo temperature alarm	LCD animation
Hi/Lo temperature tracking	√
Digital camera resolution	5MP
Digital zoom	2x, 4x
Voice recording	√
Wi-Fi / Bluetooth	√
Wi-Fi live streaming	√
Analysis software	PC+APP

General Characteristics

Battery	5200mAh detachable Li-ion battery pack (UT-M17)
Operating time	Approx. 5 hours (with Wi-Fi off)
USB	Type-C
Storage	8GB Internal & 32GB Micro SD card
Image storage format	JPG
Protection	IP54 & 2m drop proof
Certificates	CE, UKCA, FCC, RoHS
Languages	EN, FR, DE, IT, ES, SV, PL, CZ, RU, PT, AR, JA, KO
Weight	880g
Dimension	261mm×104mm×97mm

Packing Details

Standard accessories	Type-C USB cable, Micro SD card, Li-ion battery pack×2, Hand Strap, English Manual, Documents Download Operation Guide
Standard individual packing	Toolbox & Gift box
Standard Qty per carton	1pcs
Standard carton size	400mm×185mm×345mm
Standard carton G.W.	3.9kg
