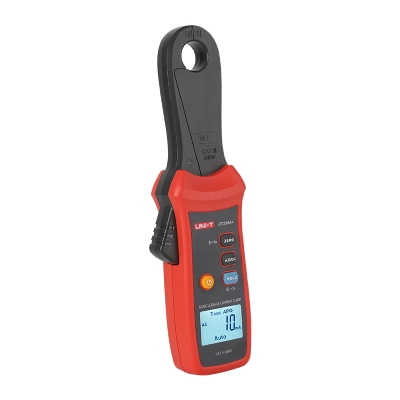

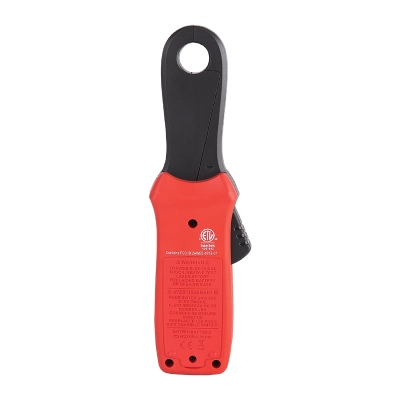

UT258A+ 20mm AC/DC LEAKAGE CURRENT CLAMP

The UT258A+ is a professional AC/DC leakage clamp meter for electricians in data centers, commercial buildings, and renewable energy plants. It detects both AC and DC leakage—unlike AC-only meters—making it ideal for solar farms, DC UPS, and EV charging. With True RMS, Bluetooth remote monitoring, and CE/cETLus certification, it’s a reliable tool for leakage troubleshooting and preventive maintenance in mixed AC/DC environments.

REQUEST A QUOTE     DOWNLOAD CATLOUGE

Compare
Categories: , ,
Description

Features of UT258A+ 20mm AC/DC LEAKAGE CURRENT CLAMP

Certifications (UT258A+ only): CE, ETL, RED, FCC

  • Jaw size: 20mm
  • AC/DC current: 40A
  • Auto range measurement
  • BT App: UNI-T Smart Measure
  • Auto-polarity test
  • CAT III 600V
UT258A+
FunctionRangeResolutionAccuracy
AC Current (A)4000mA1mA ±(1.5%+5)
40.00A0.01A ±(1.3%+5)
DC Current (A)4000mA1mA ±(1.5%+5)
40.00A0.01A ±(1.3%+5)
Features
True RMSyes
Jaw size20mm
Display count4000 Counts
Sampling rate2 times/s
Auto rangeyes
MAX/MIN/AVG.N/A
Dual displayN/A
Auto-polarityYES, DCA measurement
LCD displayHTN LCD
Backlightyes
Data storageN/A
BlutoothBT5.X
Over-range indicationYES
Low battery indicationyes
Auto power offAround 15 minutes
Power supply6LR61 9V
Safety regulationEN 61010-1：2010+A1:2019；
EN IEC 61010-2-032:2021+A11：2021；
EN 61326-1:2013, EN61326-2-2:2013
Working environment0℃～40℃ ；≤75%RH     Altitude < 2000m
Storage environment Storage Temperature: -10℃ ~ 60℃    Storage Humidity: <80%RH
Pollution degreeClass 2
Overvoltage categoryCATⅢ 600V
CertificationCE, ETL

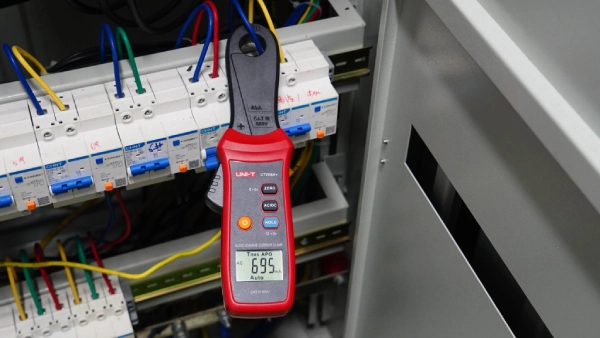

DSC04963-2048x1153

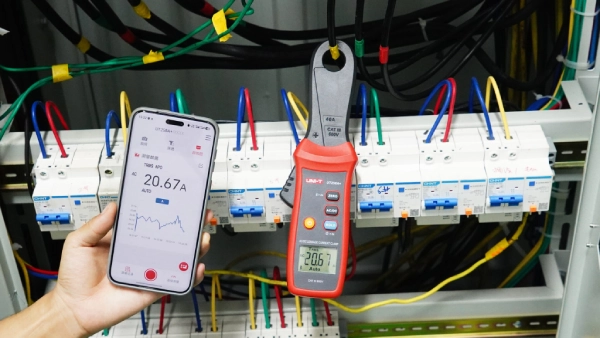

DSC05164-2048x1153

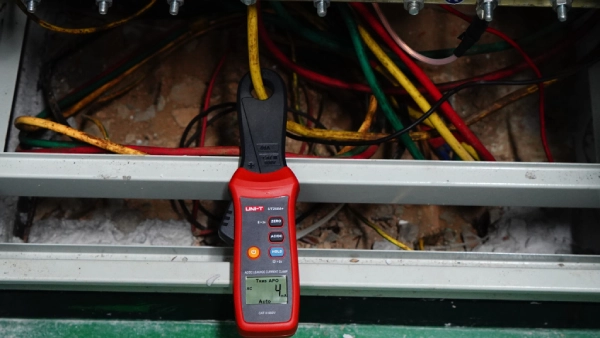

DSC04968-2048x1153

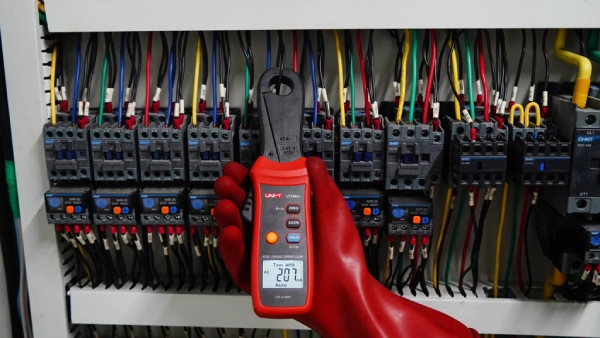

DSC04957-2048x1153

UT258A+ Data Sheet

UT258A+ User Manual English
