Home Ainuo Power Analyzer All-in-one 400Hz Ground Power Unit (GPU)

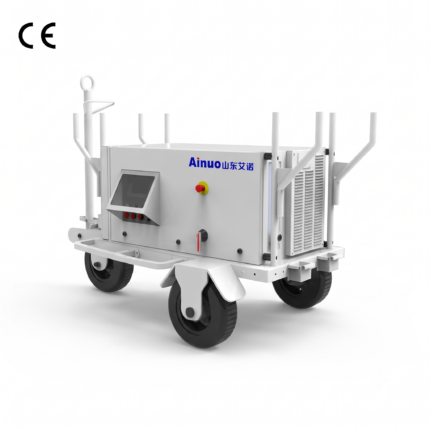

400Hz Ground Power Unit
400Hz Ground Power Unit
Back to products

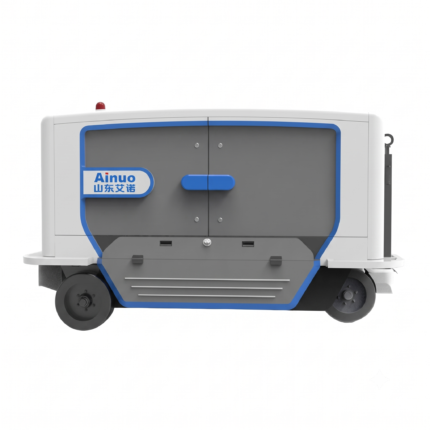

Energy Storage Solid-State Power Supply
Energy Storage Solid-State Power Supply

All-in-one 400Hz Ground Power Unit (GPU)

Model:
AN17PC(F)
Application:
Applied to areas where aircraft are concentrated, such as near-gate positions, remote-gate positions, maintenance hangars, and airport aprons.
Compare
Add to wishlist
Categories: Ainuo, Power Analyzer
Share:
  • Description
Description

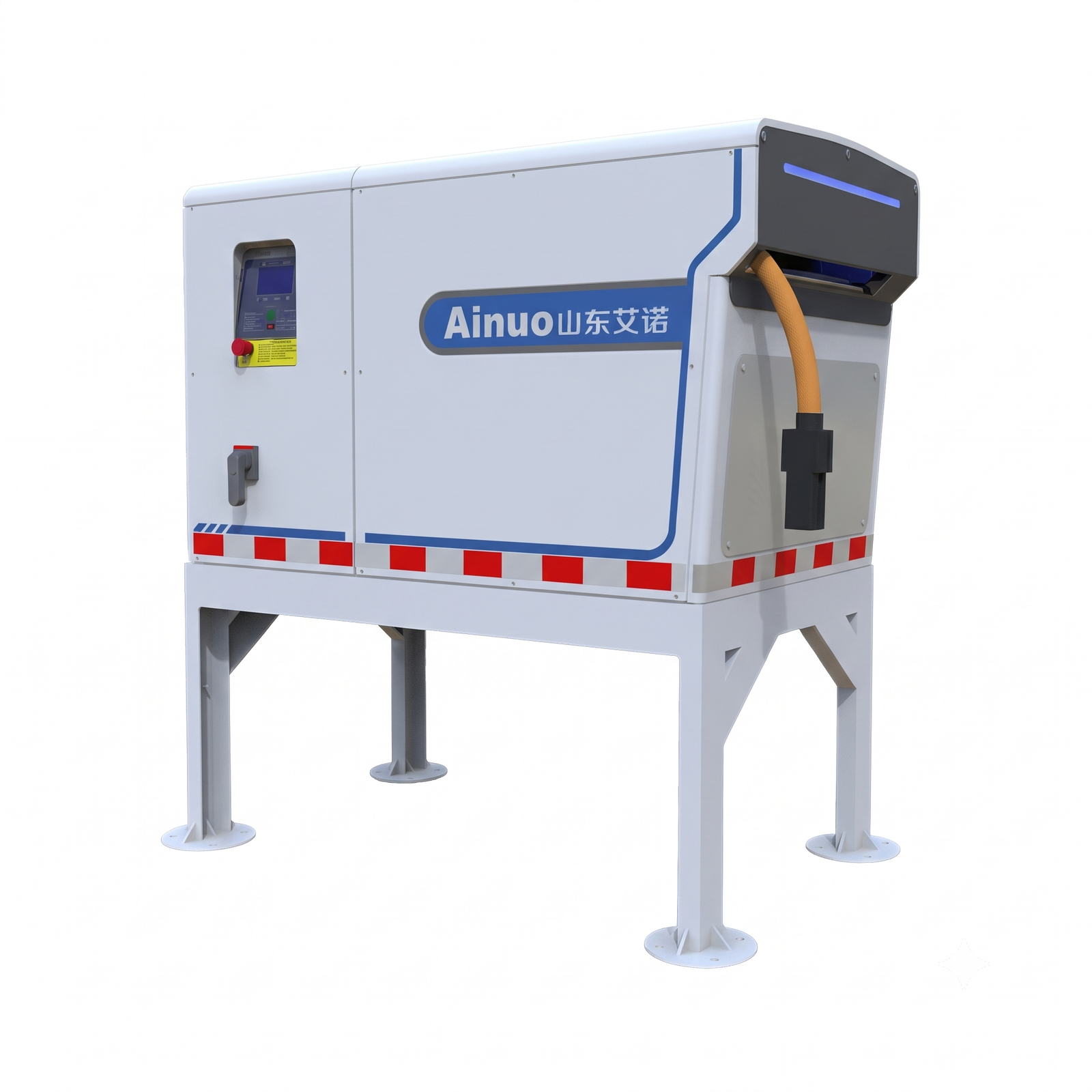

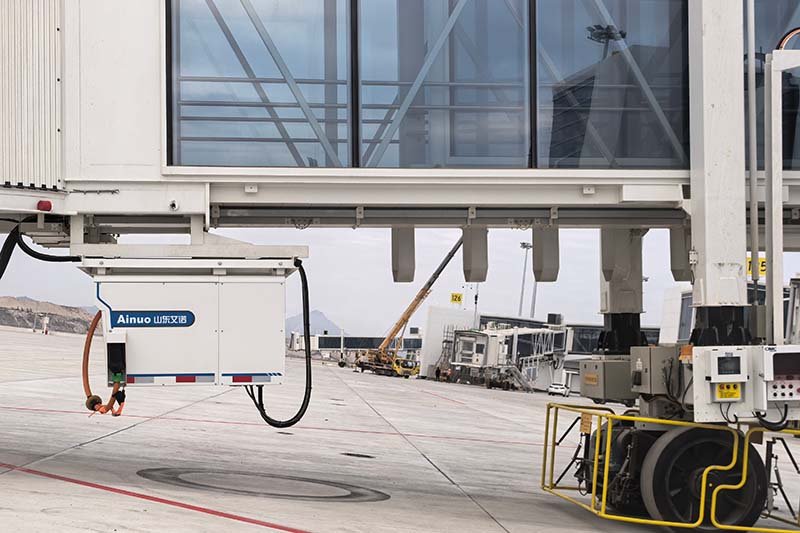

AN17PC(F) Series all-in-one 400Hz ground power unit (400Hz GPU) is designed to provide power at airports. Following the"Plug and Play" concept, the entire unit integrates the solid-state power unit with a reel through structural optimization, achieving the aircraft's power supply. The power unit may be suspended under jet bridges or installed on ground bases, enabling flexible application, convenient field installation, and high service guarantee efficiency.

Ainuo all-in-one 400Hz ground power unit (400Hz GPU) represents the optimal solution for jet bridge power supply at airports. The entire unit integrates the solid-state power unit with a reel through structural optimization, achieving a perfect combined structure. It features fast installation, simple operation, and high service guarantee efficiency.

  • Simple and fast installation on site without complex operations
  • Combined structure, small size, and low weight.
  • Strong load-bearing capacity, particularly suitable fornext-generation all-electric aircraft such as the B787 and A380
  • Intelligent design for drum rotation speed, automatic windingand unwinding at the end, and fast and efficient operation.
  • Overall optimized structure, high reliability, and easymaintenance
  • Equipped with a cable voltage drop compensation function, ensuring power quality at the aircraft end
  • Equipped with an interlocking power supply function, ensuring a safe power supply for aircrafts
  • Strong overload capability, withstand 4 times overload for 1s
  • Superior waveform quality, with a harmonic content of <1.5%
  • With novel 12-pulse rectifier technology, the input current distortion is <5%, and the input power factor is >0.96

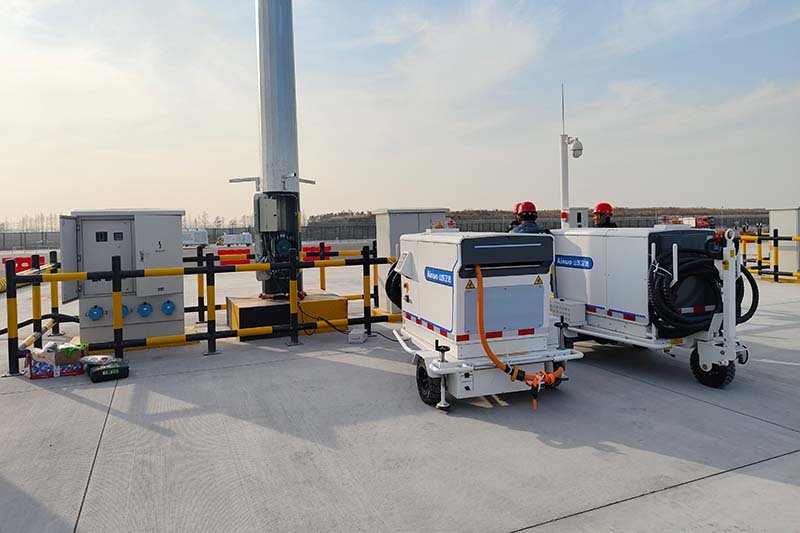

The all-in-one 400Hz ground power unit (400Hz GPU) is applied to areas where aircraft are concentrated, such as near-gate positions, remote-gate positions, maintenance hangars, and airport aprons.
