Programmable Broadband Static Variable Power Supply
Programmable Broadband Static Variable Power Supply

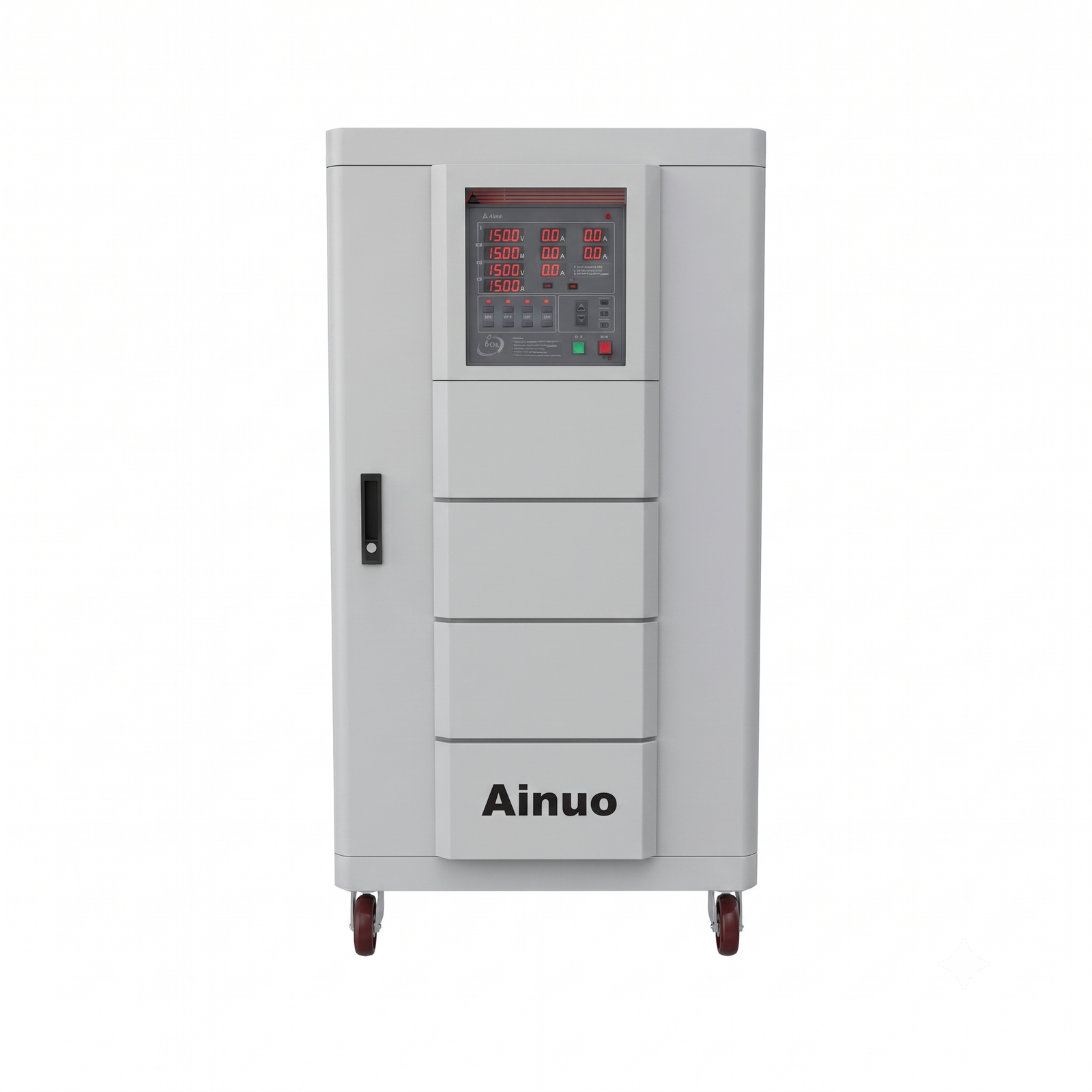

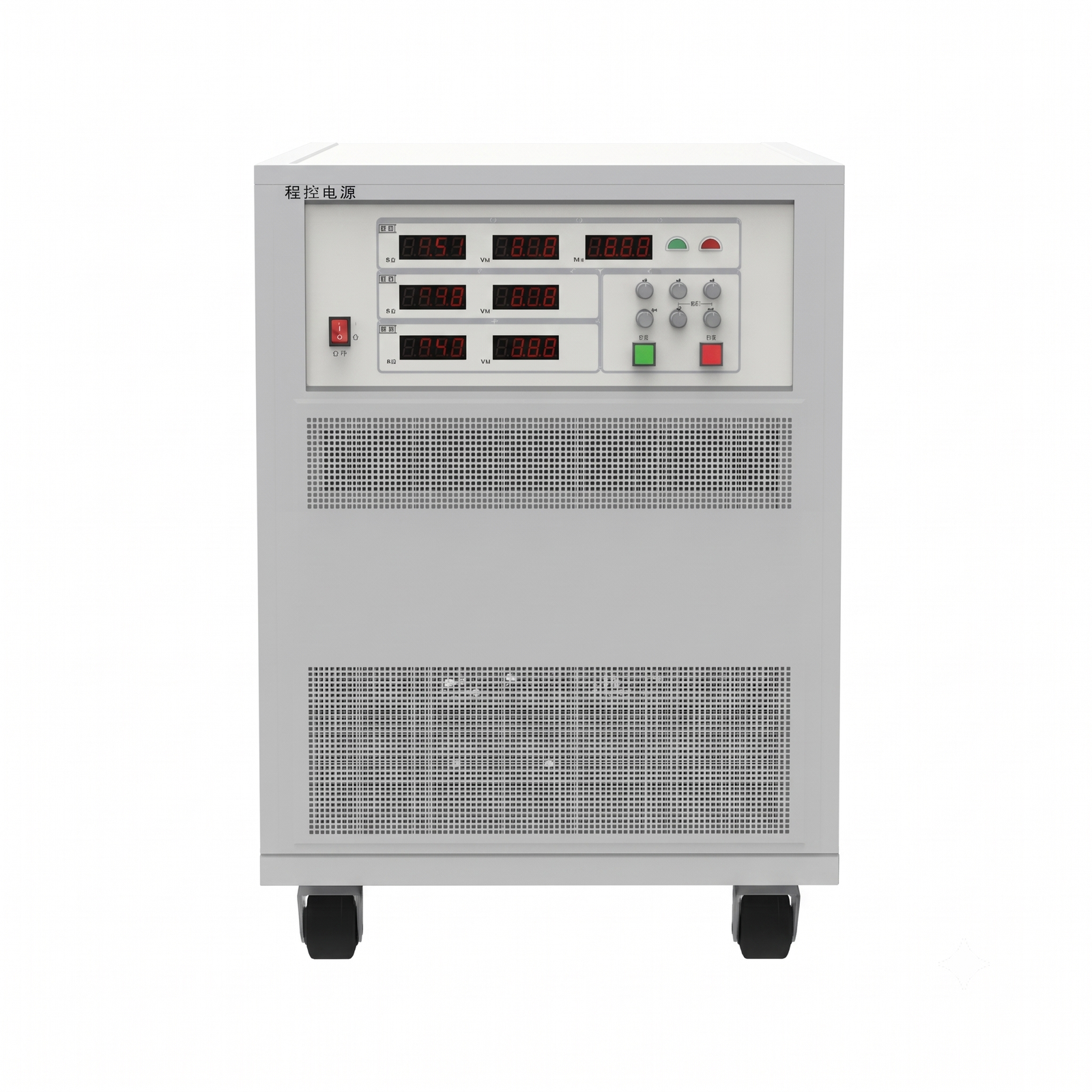

Wideband Static Power Supply

Model:
AN37(F)
Application:
Designed for the testing field of the latest generation large aircraft and their airborne equipment.
Compare
Add to wishlist
Categories: ,
Description

AN37(F) Series Wide Frequency Solid-state Power adopts digital control technology, designed for the power supply and testing field of the latest generation large aircraft and their airborne equipment. It is capable of meeting the testing and maintenance requirements of the latest B787, A380 passenger aircraft, and airborne equipment.

  • Output frequency adjustable within a wide range of 280Hz-850Hz with 0.1Hz precision; output voltage adjustable within a range of 10.0V-300.0V with 0.1V precision.
  • Professionally designed to meet the requirements for wide-frequency testing and power supply of large aircraft and airborne equipment.
  • Has FPGA digital control, combined with SPW smallM high-frequency pulse width modulation and isolation transformer filtering, ensuring high power density and exceptional stability of the entire system.
  • The entire system adopts a modular design, featuring high power density, for easy maintenance and functionality expansion.
  • Fan speed is intelligently regulated based on temperature, ensuring low noise.
  • Rich remote control interfaces: customers may choose from RS485, RS232, GPIB, Ethernet, and analog control interfaces to achieve remote control of the power supply.

It is capable of meeting the testing and maintenance requirements of the latest B787, A380 passenger aircraft, and airborne equipment.
